WNM-2.5 Type
WNM CNC SPRING END GRINDING MACHINE
WNM-2.5 Type
WNM CNC SPRING END GRINDING MACHINE
Function point
1.The grinding head is controlled by computer,realizing following properties,such as, automatic replacing, automatic feeding speed adjustment,automatic feeding quantity adjustment, automatic-compensation of grinding pressure,as well as manual operation for grinding pressure.
2.The rotational speed of the feed tray could be adjusted by frequency-control gear device.
Mian Technique Parameter
Style |
WNM-2.5 |
Wire Diameter(mm) |
Φ0.3~Φ2.5 |
Diameter of Grinding Spring(mm) |
Φ5~Φ40 |
Height of Grinding Spring(mm) |
8-90 |
Grinding Wheel Size(Outside×Height) |
Φ220×50 |
Grinding Head Speed(n/min) |
2840 |
Machine Dimension(L×W×H)(mm) |
1585×1530×1870 |
Machine Weight(kg) |
800 |
Voltage |
Three Phase 380V.AC.50HZ |
Total Motor Power(5PCS)(kw ) |
4 |
Location: | Ningbo, China |
Business Type: | Manufacturer, Exporter |
Brands: | WNJ |
Certificate: | CE, ECM, Technology Patent |
Terms of payment and delivery: | pay 40% deposit before producing and 60% balance against copy of documents |
Minimum order quantity: | 5 sets |
Price: | Consultation |
Packing details: | wooden box |
Delivery time: | Consultation |
Payment method: | Common way is by T/T, L/C is also acceptable. |
WNJ is a leading Custom WNM2.5 WNM CNC SPRING END GRINDING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
- Customer orientation is considered with customized solutions
- Offer services to overseas customers with global agent
- A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
- Over 200 skilled worker,50 technicians and one group of 20 engineers
- Easy reconfiguration and adaptation to new production/manufacturing realities;
- Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
- Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
- Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
TK8120 12AXES CNC SPRING COILING MACHINE...

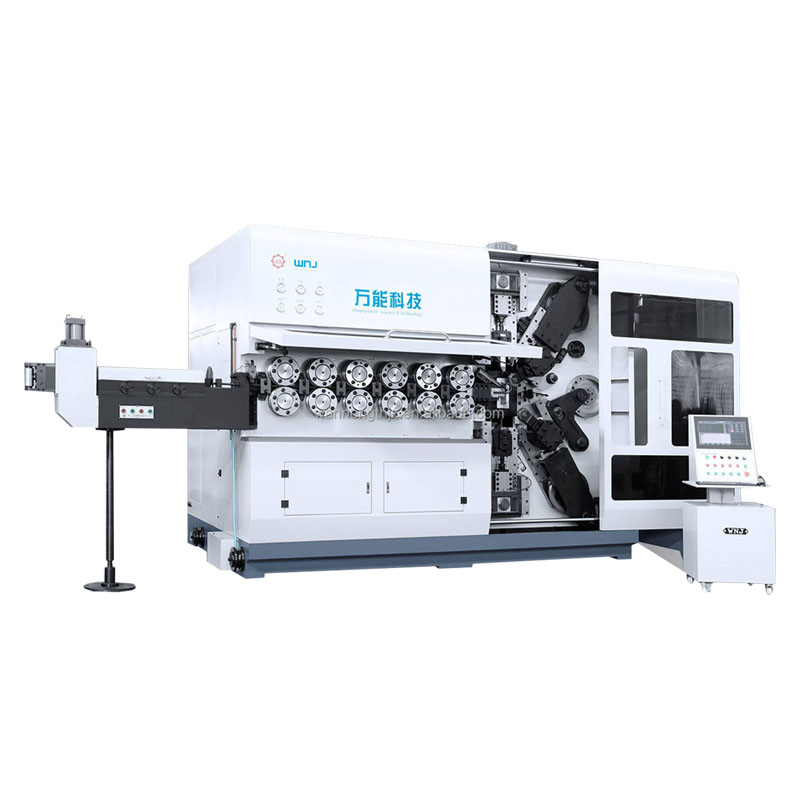

See DetailsTK-7200-6 TK-7200-6 7AXIS CNC SPRING COILING MACHINE...

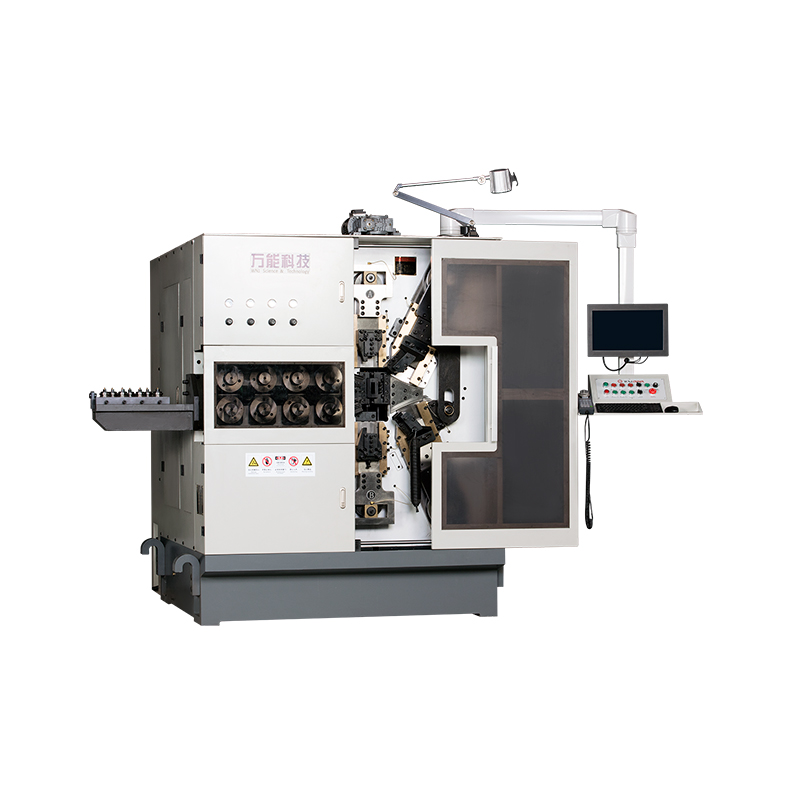

See DetailsTK790 6-7 AXES CNC SPRING COILING MACHINE ...
See DetailsTK-5200-6 TK-5200-6 5AXIS CNC SPRING COILING MACHINE...

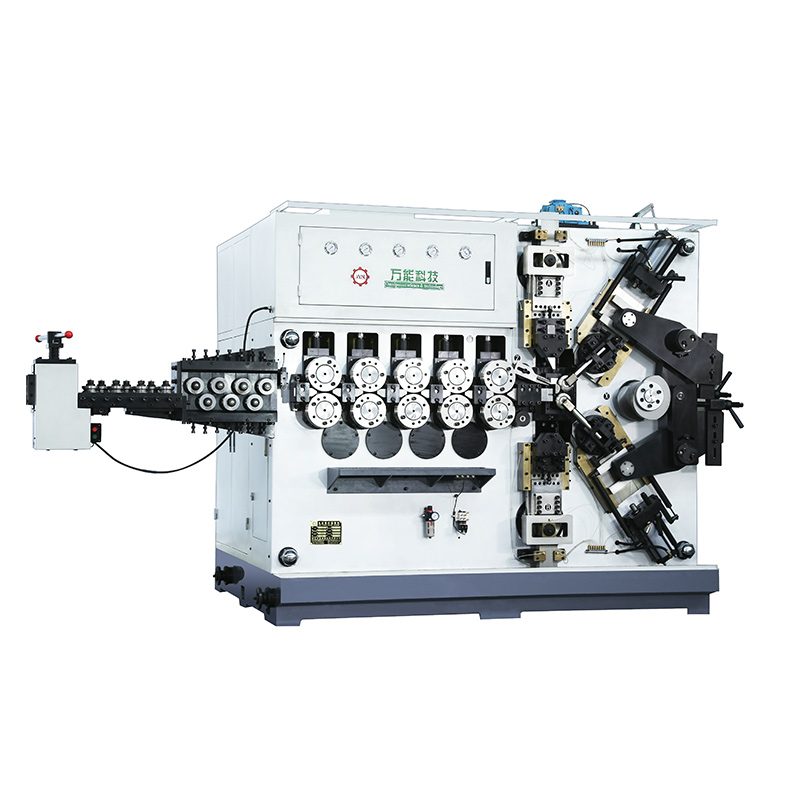

See DetailsTK-5160-5 TK-5160-5 5AXIS CNC SPRING COILING MACHINE...

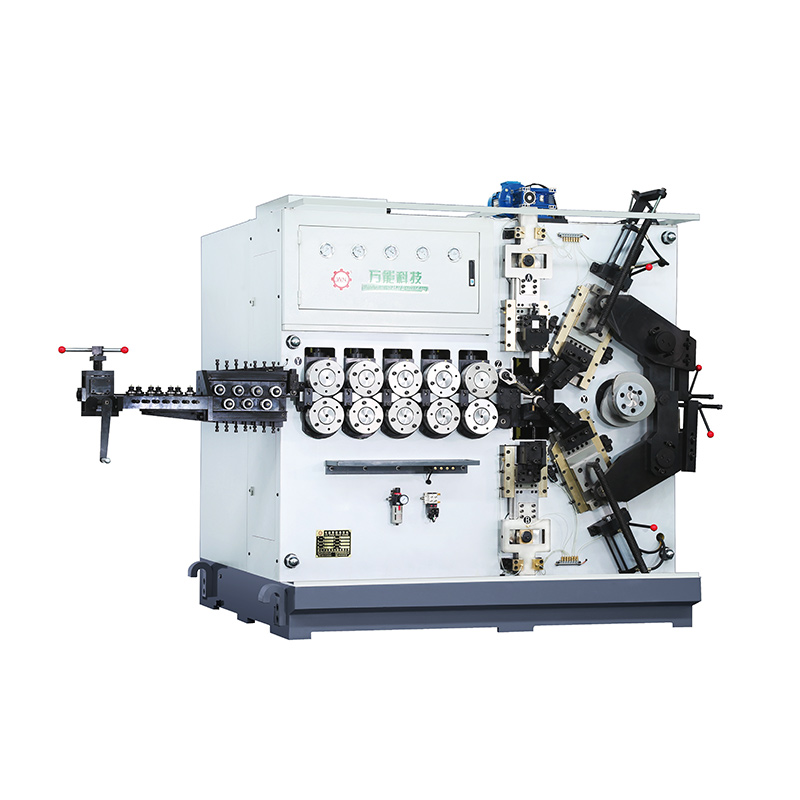

See DetailsTK-5120-5 TK-5120-5 5AXIS CNC SPRING COILING MACHINE...

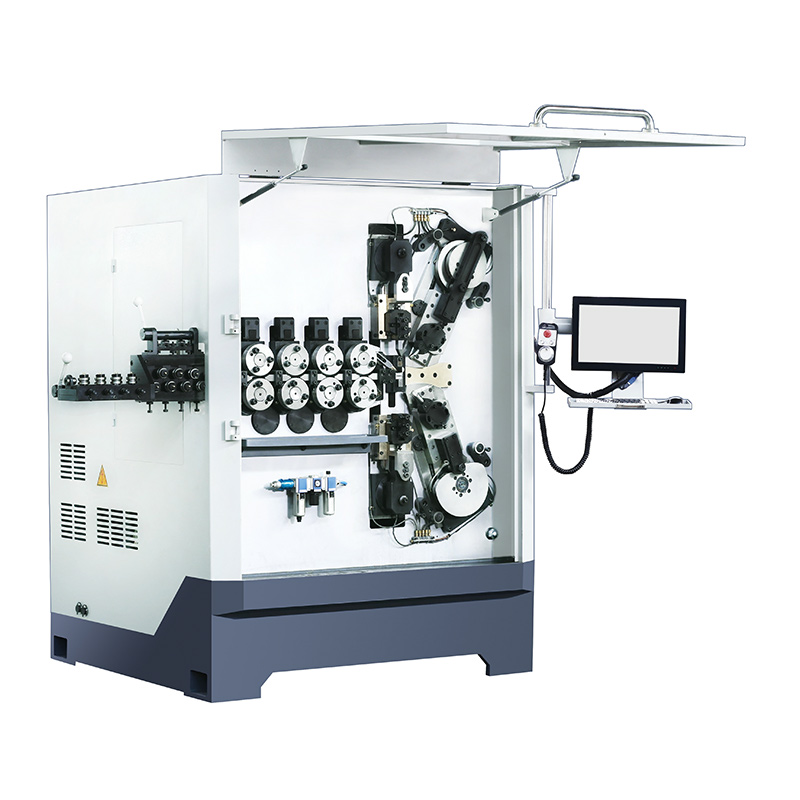

See DetailsTK-690 TK-690 6AXIS CNC SPRING COILING MACHINE...
See DetailsTK-590Ⅱ TK-590Ⅱ 5AXIS CNC SPRING COILING MACHINE...

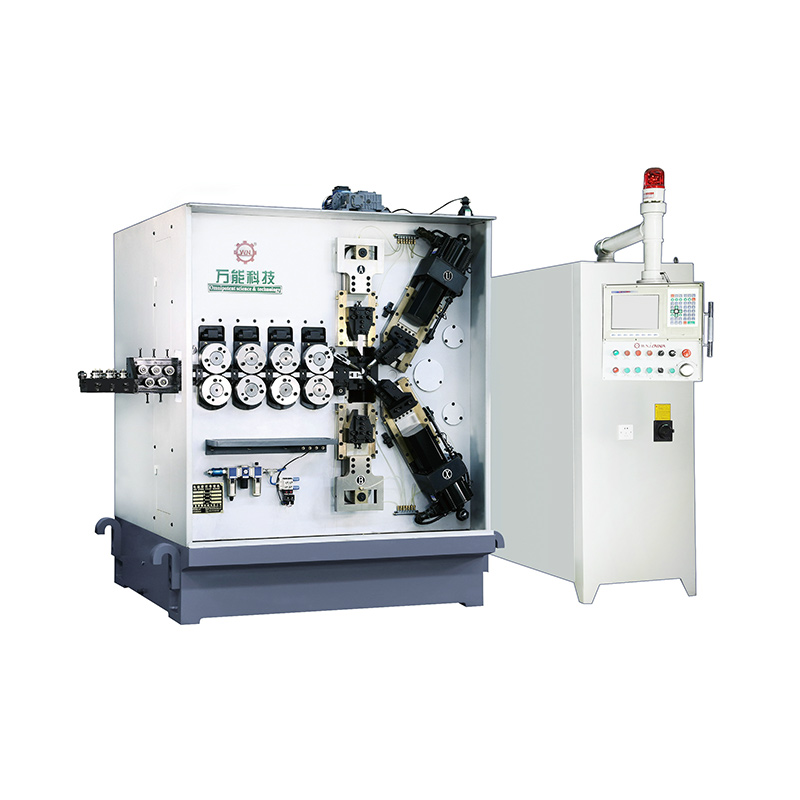

See DetailsTK-680 TK-680 6AXIS CNC SPRING COILING MACHINE...
