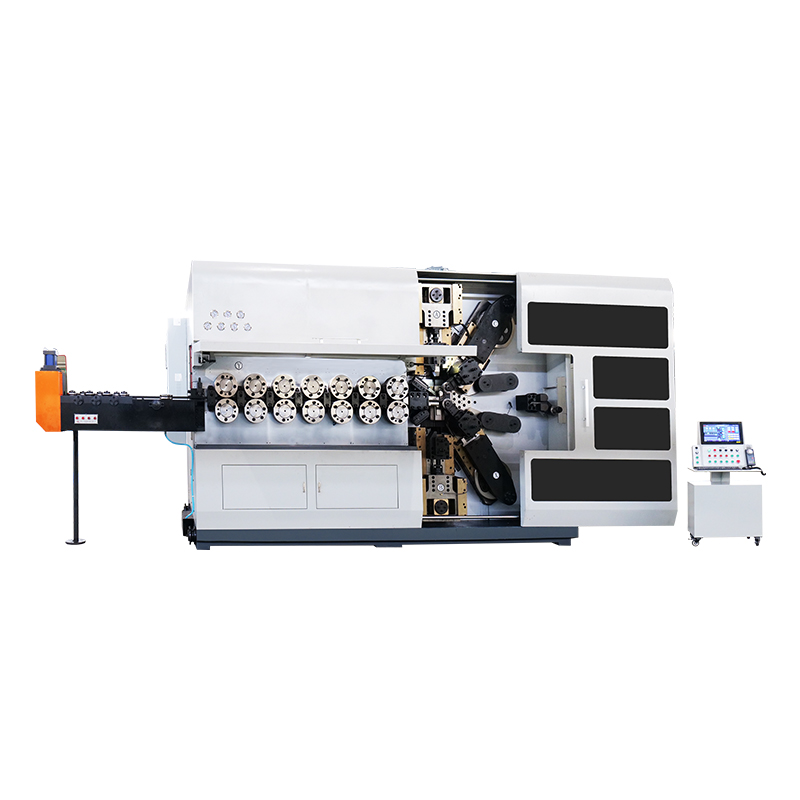

Custom TK-15260 CNC Spring Forming Machine

  • Description
  • Additional Information
  • Model TK14230 TK-15260
    Number of CNC axes Φ12~Φ23 Φ16~Φ26
    Diameter of steel wire(mm) 273 410
    Total power(kw) ≤Φ19 ≤Φ22
    Oil quenching tensile strength(≤1900n/mm2) Φ260 Φ260
    Maximum outer diameter(mm) No Limitation No Limitation
    Wire feeding length 65m/min 60 m/min
    Wire feeding speed(m/min) Left or Right Left or Right
    Rotating direction Double Points Double Points
    Forming method 6 Pairs 7 Pairs
    Pair of wire feed rollers 16×2 22×2
    Reducing motor(kw) 16 23
    Pitch motor(kw) 16×6 23×7
    Feeder motor(kw) 54×2 80×2
    Cutter motor(kw) 8.8×2 (Optional) 10×2(Optional)
    Reduction shift(kw) 4.4 4.4
    Dimensions of machine in working condition(LxWxH) 6850×4000×3050 7300×4000×3100
    Main machine weight(kg) 35000 38000
    Power supply 3AC 380V/50HZ 3AC 380V/50HZ

About Company

WNJ is a leading Custom TK-15260 CNC Spring Forming Machine factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
