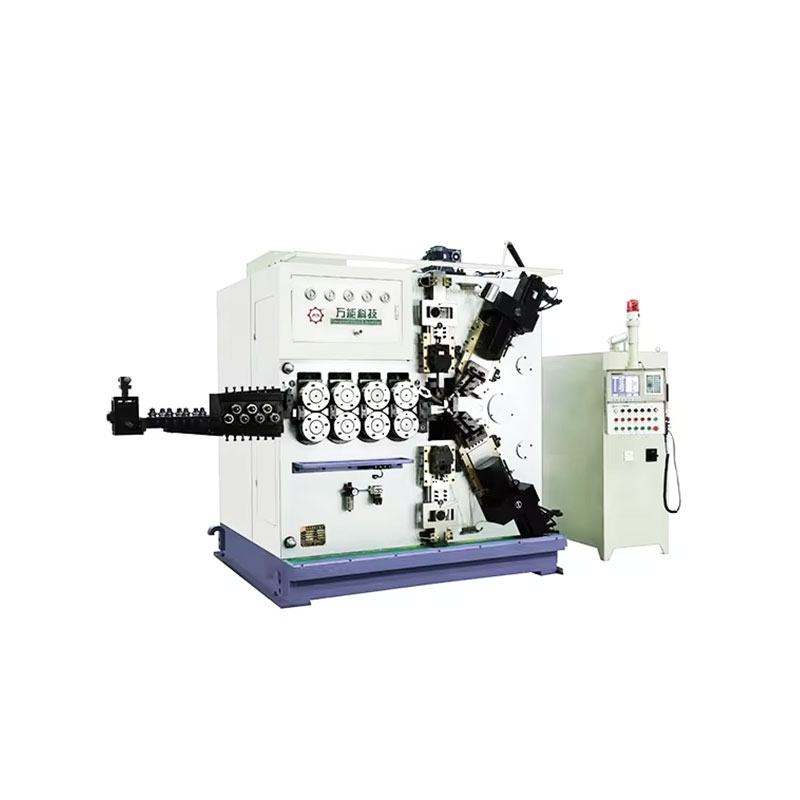

Custom TK-6160 CNC SPRING ROLLING MACHINE

TK-6160 CNC SPRING ROLLING MACHINE

TK-6160 CNC SPRING ROLLING MACHINE

TK-6160

TK-6160 CNC SPRING ROLLING MACHINE

+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Main Technique Parameter

    Major projects

    Technical parameters

    Number of NC axes

    6 shafts (37 kW for feed shaft motor, 2*7 KW for camshaft motor) The cutting shaft is 2*30KW, and the pitch shaft motor is 4.5KW).

    Total power

    121KW

    Wire diameter

    Φ8.0—φ16.0㎜

    (When the tensile strength of the oil quenching line ≦ 1900, the ≦ φ13.5).

    Maximum outer diameter

    Φ250㎜

    Feed speed

    50m/min(max)

    Feed length

    boundless

    Rotation direction

    control

    Molding method

    Two-point type

    Number of wire feed wheels

    4/5 pairs

    Machine weight

    16800Kg

    power supply

    380V. AC.50HZ

    Dimensions of the machine in working condition (including electrical cabinets).

    Front*side*height (mm) 5950 * 3100 * 2700

    Wireframe is supplied as standard

    SLB2800
