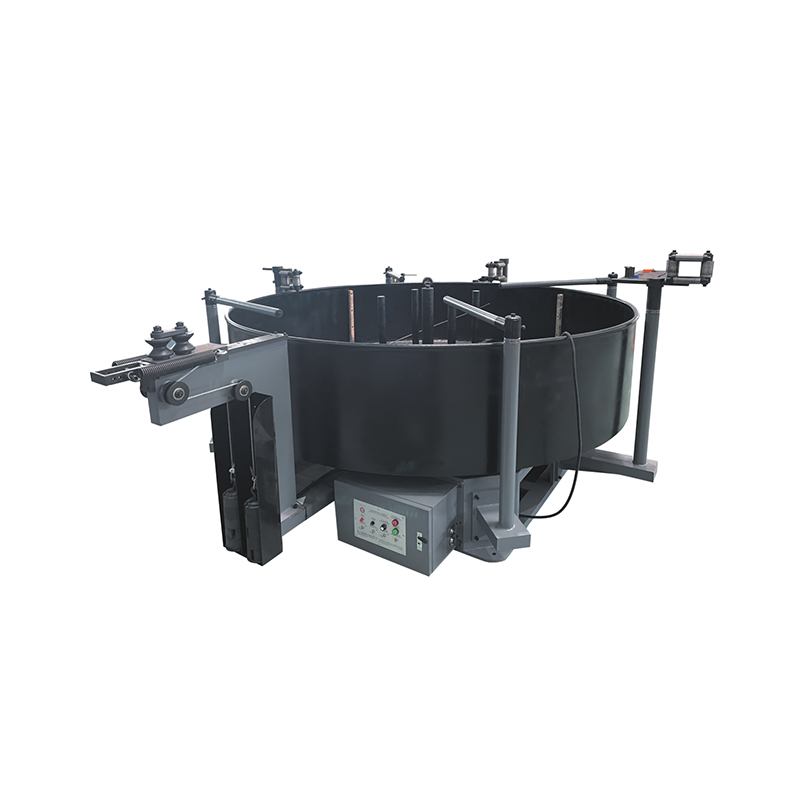

Custom SLB-2800 WIRE FEEDING RACK

SLB-2800 WIRE FEEDING RACK

SLB-2800 WIRE FEEDING RACK

SLB-2800
SLB-2800 WIRE FEEDING RACK
+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Function point
    WNJ automatic wire feeding rack adopts imported frequency converter to control the motor. The speed can be adjusted freely. lt can realize the functions of synchronous wire feeding, inching wire feeding, wire winding alarm, wire breaking alarm, abnormal detection, positive and negative operation, etc.



    Main Technique Parameter

    Model

    SLB-70

    SLB-150

    SLB-B00

    SLB-500

    SLB-1000B

    SLB-2000

    SLB-2800

    SLB3000G

    Max.loading weight(KG)

    70

    150

    300

    500

    1000

    2000

    3000

    3000

    Feeding Tray Diameter(mm )

    650

    800

    1100

    1750

    1750

    2200

    2600

    2800

    Maximum speed (R/Min)

    110

    110

    40

    36

    20

    14

    14

    12

    Power

    0.25

    0.25

    1.1

    3

    4

    5.5

    5.5

    5.5

    Voltage

    AC/220V/50HZ

    3AC/220V/50HZ

    3AC/220V/50HZ

    Matching model

    TK-208

    TK312

    TK316

    TK320B

    CNC625D

    CNC625Z

    CNC1225

    CNC1025A

    CNC1025B

    TK335

    CNC635B

    CNC635Z

    CNC1035

    TK650

    CNC650Z

    CNC1260B

    ZW480

    ZW880

    CNC1040

    CNC1240B

    TK550B

    TK660

    TK580B

    TK590

    TK790

    CNC1280B

    TK5120

    TK5160

    TK5200

    TK8120

    TK7200

    TK7230
