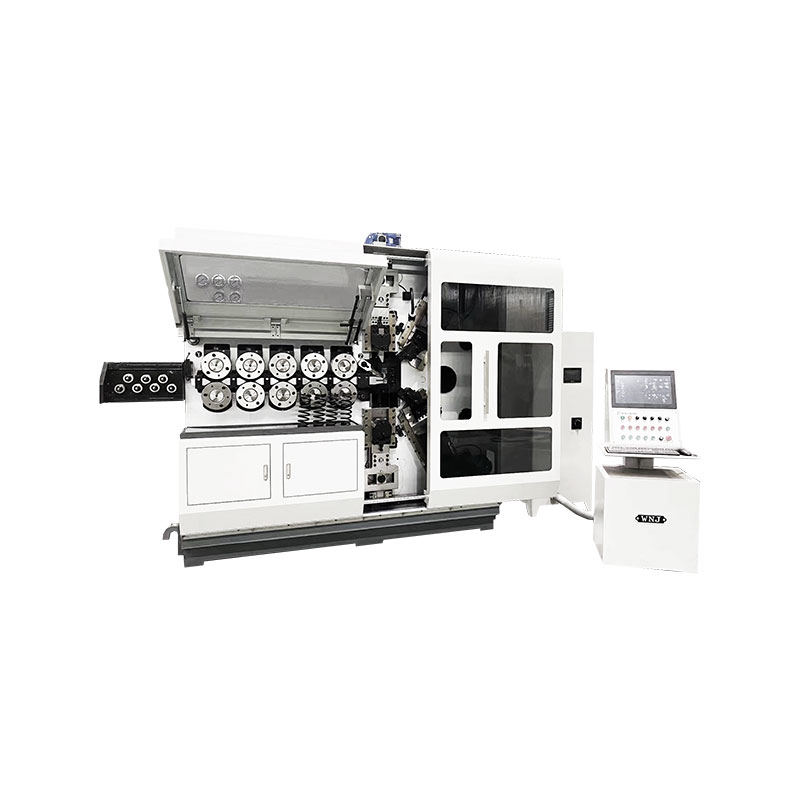

Custom TK-6120 CNC SPRING ROLLING MACHINE

TK-6120 CNC SPRING ROLLING MACHINE

TK-6120 CNC SPRING ROLLING MACHINE

TK-6120

TK-6120 CNC SPRING ROLLING MACHINE

+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Main Technique Parameter

    Major projects

    Technical parameters

    Number of NC axes

    6 shafts (30 kW feed shaft motor, 2 x 5.5 kW camshaft motor, 2 x 15 kW cut-off shaft, 4.5 kW pitch shaft motor)

    Total power

    80KW

    Wire diameter

    Φ6.0—φ12.0㎜

    (When the tensile strength of oil quenching line ≦ 1900, ≦φ10.0)

    Maximum outer diameter

    Φ150㎜

    Feed speed

    58m/min(max)

    Feed length

    boundless

    Rotation direction

    control

    Molding method

    Two-point type

    Number of wire feed wheels

    5 pairs

    Machine weight

    12500Kg

    power supply

    380V. AC.50HZ

    Dimensions of the machine in working condition (including electrical cabinets)

    Front*side*height (mm) 5000 * 2200 * 2500

    Wireframe is supplied as standard

    SLB2800

About Company

WNJ is a leading Custom TK-6120 CNC SPRING ROLLING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
