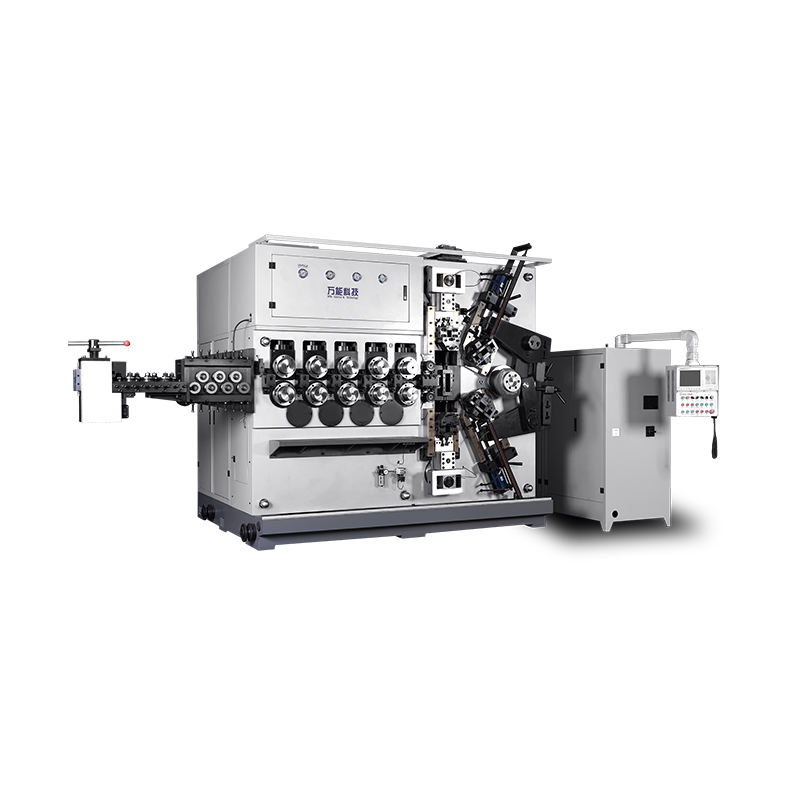

TK-5200 5AXES CNC SPRING COILING MACHINE
  • TK-5200 5AXES CNC SPRING COILING MACHINE

TK-5200 5AXES CNC SPRING COILING MACHINE

TK-5200

TK-5200 5AXES CNC SPRING COILING MACHINE

+86-575-83030220 Contact Us


PREV：SLB-2800 WIRE FEEDING RACK
NEXT：No next product
  • Description
  • Additional Information

  • Function point

    1. Controlled with five axes: wire feed axis, cam axis,upper cutter axis, lower cutter axis and pitch axis.

    2. The five axes can work single-step or synchronously.

    3. Computer interface displayed in Chinese and English which makes the operation easy

    4. Equipped with right and left rotation cutter frame.

    5. Cutter can perform straight cut, opposite cut and twist cut.

    6. Computer has automatic programming function.





    Main Technique Parameter

    Style

    TK-5200

    Number of Axes

    Five axes(wire feed, pitch, cam, upper cutter, lower cutter)

    Wire diameter(Carbon steel wire)(mm)

    Φ12 〜Φ20

    Total power (kw)

    145

    Oil Quenching Line(≤1900N/mm²)

    ≤Φ16

    Max.Outside Diameter

    Φ260

    Wire Feed Length

    No Limitation

    Wire Feed Speed

    Slow gear:31.5m/min
    Fast gear: 49m/min

    Rotation

    Left or Right

    Forming Way

    Double Points

    Number of Wire Feed Axes

    5 Pairs

    Cam Axis Motor (kw)

    15

    Pitch Axis Motor (kw)

    7

    Wire Feed Axis Motor (kw)

    55

    Cutter motor (kw)

    30x2

    Machine working state size(LxWxH)(mm)

    6400x3300x2900

    Main Host Weight(kg)

    23000

    Voltage

    3AC 380V/50HZ
