TK-335

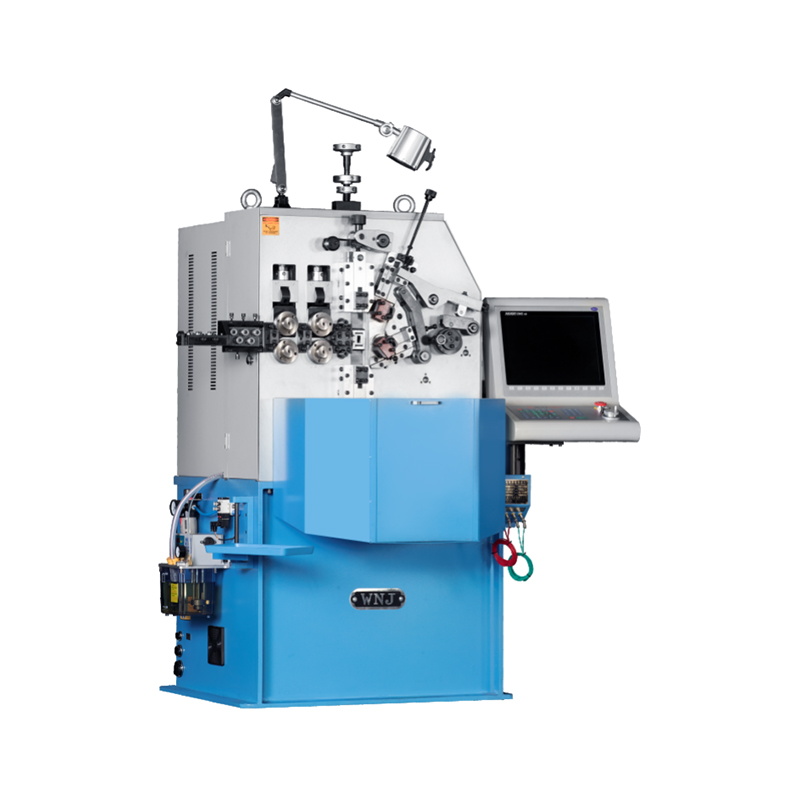

TK-335 3AXIS CNC SPRING COILING MACHINE
Skype: wn_machine
Whatsapp: 008615657581166
Function point
1.Z axis for pitch control seperately.
2.Three axis can work in high speed single-step or synchronously.
3.Computer interface displayed in Chinese and English which makes the operation easy.
4.Equipped with right or left-handed winding blade rest.
5.Make sample by hand wheel.
Mian Technique Parameter
Style |
TK-335A/B |
Wire Diameter |
Φ1.5-Φ3.5 |
Max.Outside Diameter |
Φ50 |
Wire Feed Speed |
100m/min(max) |
Wire Feed Instruction Value |
+0.01~±9999.99mm |
Cam Instruction Value |
±0.1°~±359.9° |
Wire Feed Servo Motor |
5.5 |
Cam Servo Motor |
5.5 |
Pitch Servo Motor |
1.0 |
Machine Weight |
1060 |
Voltage |
Three Phase 380V.AC.50HZ |
Machine Dimension(LxWxH) |
1280x810x1850 |
