TK-208A/TK-208B
TYPE TK-208A/TK-208B CNC SPRING COILING MACHINE
TK-208C
TYPE TK-208C CNC SPRING COILING MACHINE
Skype: wn_machine
Whatsapp: 008615657581166
Function point

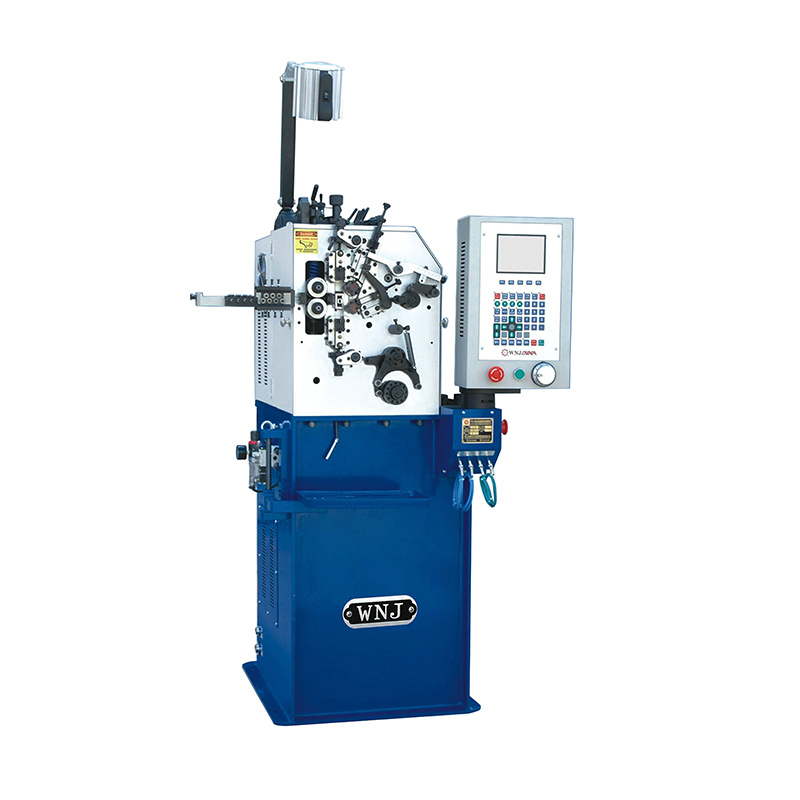

TYPE TK-208A/TK-208B CNC SPRING COILING MACHINE
The machine has two axis controlled by computer with high precision,one is wire feed axis and the other is cam axis,they can work separately or synchronously.The wire feed axis controls wire feed,and the cam axis drives cam to form the spring by control I ing the outside d ia meter, space and cutting blade.This machine is suitable for producing a variety of right or left-handed springs and torsion springs,special shaped wires and springs etc.
TYPE TK-208C CNC SPRING COILING MACHINE
The machine has two axis controlled by computer with high precision,one is wire feed axis and the other is cam axis,they can work separately or synchronously.The wire feed axis controls wire feed,and the cam axis drives cam to form the spring by controlling the outside diameter,space and cutting blade. This machine is suitable for producing a variety of right or left-handedtorsion springs,special shaped wires and springs etc.The machine is equipped with length detector, which has the functions of detection reparation and compensation.
Mian Technique Parameter
|
Style |
TK-208A/B/C |
|
Wire Diameter |
|
|
Φ0.15~ Φ0.8 |
|
|
Max.Outside Diameter |
Φ18 |
|
Wire Feed Speed |
|
|
100m/min(max) |
|
|
Wire Feed Value |
±0.01~±9999.99mm |
|
Cam Setting Value |
|
|
±0.1°~±359.9° |
|
|
Wire Feed Servo Motor |
1.0 |
|
Cam Servo Motor |
|
|
1.0 |
|
|
Machine Weight |
350 |
|
Voltage |
|
|
Three Phase 380V.AC.50HZ |
|
|
Machine Dimension(LxWxH) |
760x630x1350mm |
