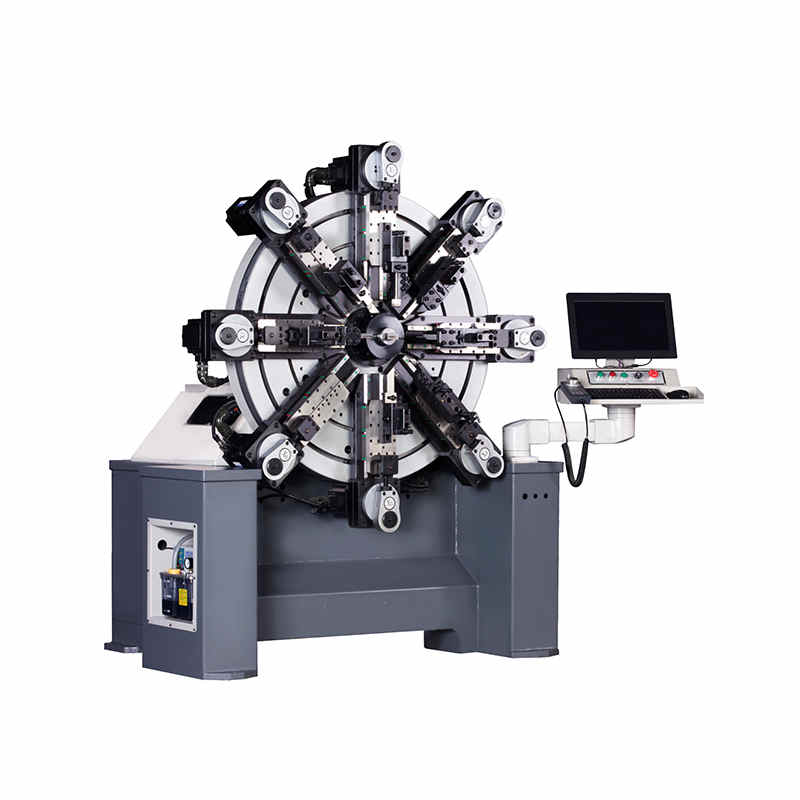

CNC-1040 10AXIS CNC SPRING COILING MACHINE
CNC1040
CNC-1040 10AXIS CNC SPRING COILING MACHINE
Function point
1. Adopts a camless and modular design, with fast adjustment speed, low noise. high accuracy, and good stability.
2. Controlled with ten axes, can work single-step or synchronously.
3. The slider adopts a precision linear guide mode and can be equipped with free hand, spinner and servo cutter.
4. Computer interface displayed in Chinese and English which makes the operation easy.
5. Can make special-shaped spring, torsion spring, tension spring and stationary products etc.
Main Technique Parameter
|
Style |
CNC-1040 |
|
|
Wire diameter(Carbon steel wire)(mm) |
Φ1.5〜Φ4 |
|
|
Max.Slide Stroke(mm) |
120 |
|
|
Total Power(kw) |
22.5 |
|
|
Max.Wire Feed Speed(m/min ) |
78 |
|
|
Number of Axes |
10 Axis |
|
|
Number of Wire Feed Axes |
3 Pairs |
|
|
Wire Feed Servo Motor(kw) |
5.5 |
|
|
Core Axis Servo Motor(kw) |
1 |
|
|
Slider Servo Motor(kw) |
2x8 |
|
|
Free Hand Servo Motor(kw) |
1.5(Optional) |
|
|
Machine working state size(LxWxH)(mm) |
2200x1600x2050 |
|
|
Main Host Weight (kg) |
2740 |
|
|
Voltage |
3AC 380V/50HZ |
|
| Location: | Ningbo, China |
| Business Type: | Manufacturer, Exporter |
| Brands: | WNJ |
| Certificate: | CE, ECM, Technology Patent |
| Terms of payment and delivery: | pay 40% deposit before producing and 60% balance against copy of documents |
| Minimum order quantity: | 5 sets |
| Price: | Consultation |
| Packing details: | wooden box |
| Delivery time: | Consultation |
| Payment method: | Common way is by T/T, L/C is also acceptable. |
WNJ is a leading Custom CNC1040 10AXES CNC SPRING FORMING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
- Customer orientation is considered with customized solutions
- Offer services to overseas customers with global agent
- A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
- Over 200 skilled worker,50 technicians and one group of 20 engineers
- Easy reconfiguration and adaptation to new production/manufacturing realities;
- Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
- Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
- Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
