CNC-635Z
CNC-635Z 5AXIS CNC SPRING FORMING MACHINE
Function point
1. This machine is for camdesign,set up spring with high speed and accuracy,good stability.
2. Adopts Taiwan' s computer control system and equipped with servomotor imported from Japan.
3. wire feed with the function of rotary wire, so it is easy to adjust.
4.Computer interface displayed in Chinese and English which makes the operation easy.
5.It is suitable for for producing double torsional spring , straight spring, pagoda-shape pull the compression spring , rectangle spring, swirl spring and other different spring and special -shape spring etc.
Mian Technique Parameter
Style |
CNC-235Z |
Wire Diameter |
Φl.5-Φ3.5 |
Total Power |
13 |
Number of Axes |
5 Axis |
Number of Wire Feed Axes |
3 Pairs |
Wire Feed Servo Motor |
5.5KW |
Rotary Wire Servo Motor |
5.5KW |
Rotary Mandrel Servo Motor |
1KW |
Curved Shaft Servo Motor |
1KW |
Cam Axis Servo Motor |
5.5KW |
Machine Dimension(LxWxH) |
2100x1700x1900 |
Machine Weight |
2700 |
Voltage |
3AC380V/50HZ |
Location: | Ningbo, China |
Business Type: | Manufacturer, Exporter |
Brands: | WNJ |
Certificate: | CE, ECM, Technology Patent |
Terms of payment and delivery: | pay 40% deposit before producing and 60% balance against copy of documents |
Minimum order quantity: | 5 sets |
Price: | Consultation |
Packing details: | wooden box |
Delivery time: | Consultation |
Payment method: | Common way is by T/T, L/C is also acceptable. |
WNJ is a leading Custom CNC-635Z 5AXIS CNC SPRING FORMING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
- Customer orientation is considered with customized solutions
- Offer services to overseas customers with global agent
- A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
- Over 200 skilled worker,50 technicians and one group of 20 engineers
- Easy reconfiguration and adaptation to new production/manufacturing realities;
- Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
- Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
- Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
CNC-625A/B Ⅲ CNC-625A/B Ⅲ 3AXIS CNC SPRING FORMING MACHINE ...
See DetailsCNC-635ⅡA/B CNC-635ⅡA/B 3AXIS CNC SPRING FORMING MACHINE...
See DetailsCNC-650ⅡA/B CNC-650ⅡA/B 3AXIS CNC SPRING FORMING MACHINE...

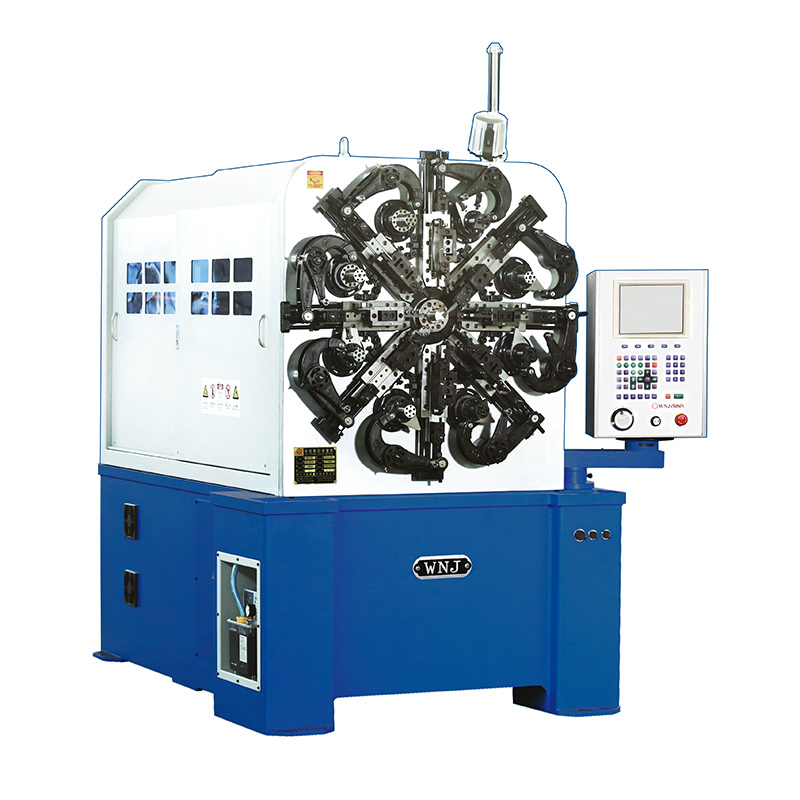

See DetailsCNC-625Z CNC-625Z 5AXIS CNC SPRING FORMING MACHINE E-mail: i[email protected]
See DetailsCNC-635Z CNC-635Z 5AXIS CNC SPRING FORMING MACHINE E-mail: [email protected]

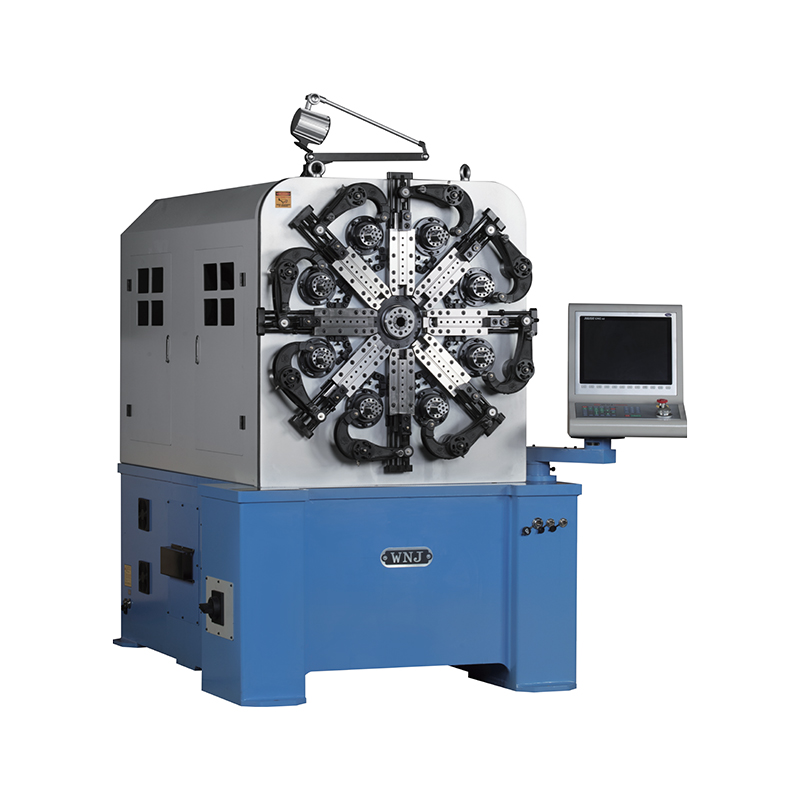

See DetailsCNC-650Z CNC-650Z 5AXIS CNC SPRING FORMING MACHINE E-mail: [email protected]
