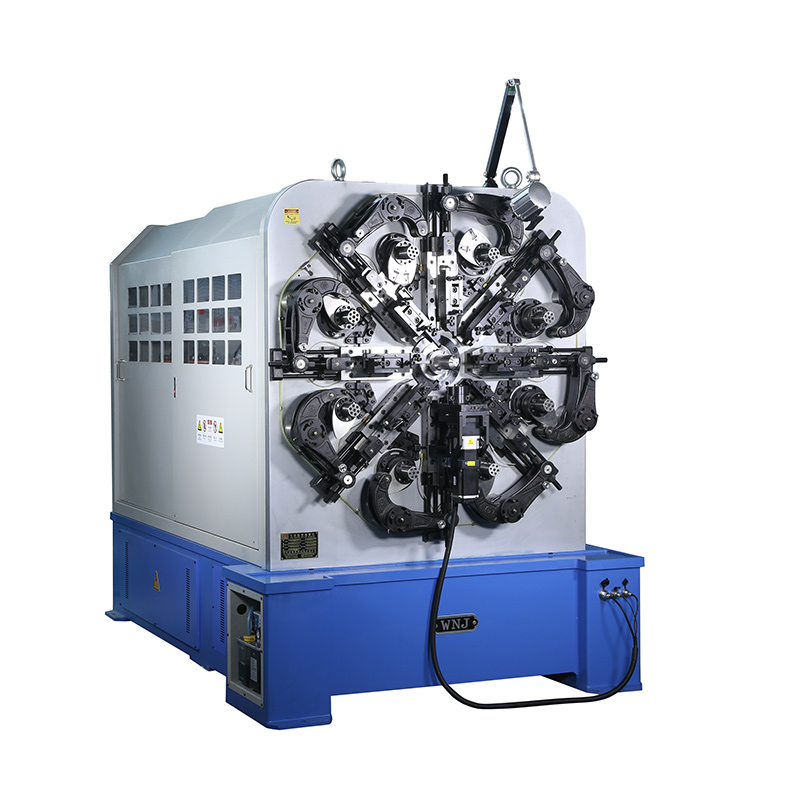

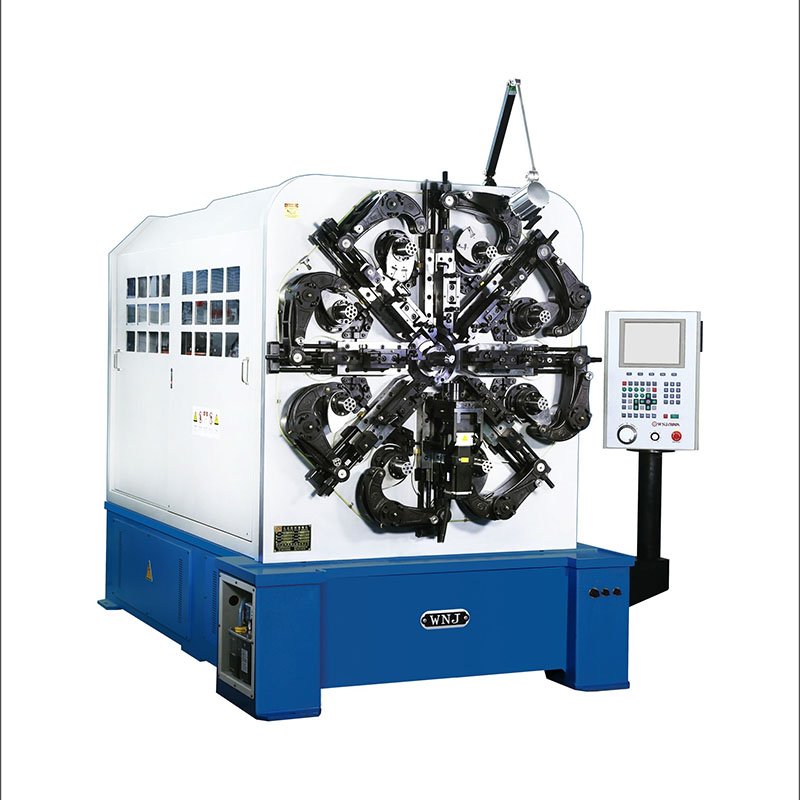

Custom CNC-650Z 5AXES CNC SPRING FORMING MACHINE

CNC-650Z 5AXES CNC SPRING FORMING MACHINE

CNC-650Z 5AXES CNC SPRING FORMING MACHINE

CNC-650Z

CNC-650Z 5AXES CNC SPRING FORMING MACHINE

E-mail: [email protected]

+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Function point

    1. Controlled with five axes, can work single-step or synchronously.

    2. Wire feeding adopts rotary wire mechanism, making debugging more convenient.

    3. Computer interface displayed in Chinese and English which makes the operation easy.

    4. Can make double torsion spring, straight spring, pagoda-shaped spring, rectangle spring, wire forming, scroll spring and special-shaped spring, etc.


    Main Technique Parameter

    Style

    CNC-650Z

    Wire diameter(Carbon steel wire)(mm)

    Φ2-Φ5

    Max. Outside Diameter(mm)

    120

    Total Power(kw )

    29.2

    Number of Axes

    5 Axis

    Number of Wire Feed Axes

    3 Pairs

    Wire Feed Servo Motor(kw )

    11

    Rotary Wire Servo Motor(kw )

    4.5

    Rotary Mandrel Servo Motor(kw )

    1

    Cam Axis Servo Motor(kw )

    11

    Machine working state size(LxWxH)(mm)

    2100x2750x2100

    Main Host Weight(kg)

    5000

    Voltage

    3AC 380V/50HZ
