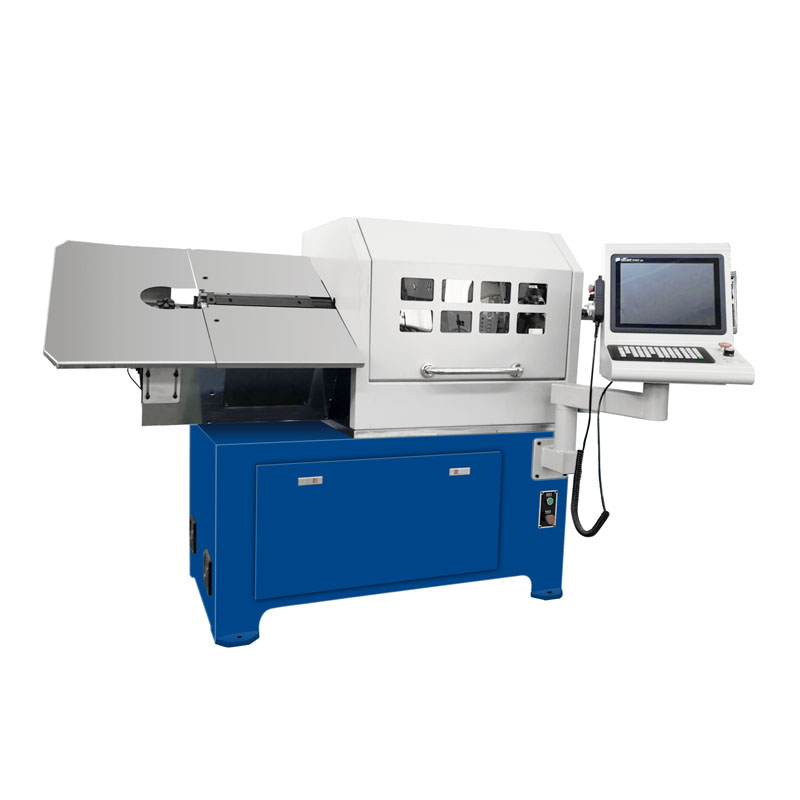

Custom ZW-480 4AXES CNC SPRING WIRE BENDING MACHINE

ZW-480 4AXES CNC SPRING WIRE BENDING MACHINE

ZW-480 4AXES CNC SPRING WIRE BENDING MACHINE

ZW-480

ZW-480 4AXES CNC SPRING WIRE BENDING MACHINE

+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Function point

    1. With four/seven axes linkage design, fast speed of machine adjust ment, high precision and good stability.

    2. Can work single-step or synchronously.

    3. Servo wire feeding is adopted, which makes more stable and conve nient.

    4. Computer interface displayed in Chinese and English which makes the operation easy.

    5. Can make different kinds of wire bending, forming of different prod ucts.





    Main Technique Parameter

    Style

    ZW-480

    Wire diameter(Carbon steel wire)(mm)

    Φ2~Φ8 soft wire
    Φ2~Φ6 hard wire

    Total power(kw)

    8

    Number of Axes

    4 Axis

    Number of Wire Feed Axes

    3 Pairs

    Wire Feed Servo Motor(kw)

    4.5

    Rotary Wire Servo Motor(kw)

    1

    Up & Down Curved Servo Motor(kw)

    1

    Curved Servo Motor(kw)

    /

    Rotary Mandrel Servo Motor(kw)

    /

    Cutter Servo Motor(kw)

    1.5

    Lift & Tray Servo Motor(kw)

    /

    Machine working state size(LxWx H) (mm)

    1450x2300x1650

    Main Host Weight(kg)

    600

    Voltage

    3AC 380V/50HZ

About Company

WNJ is a leading Custom ZW-480 4AXES CNC SPRING WIRE BENDING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
