TK-7200-6

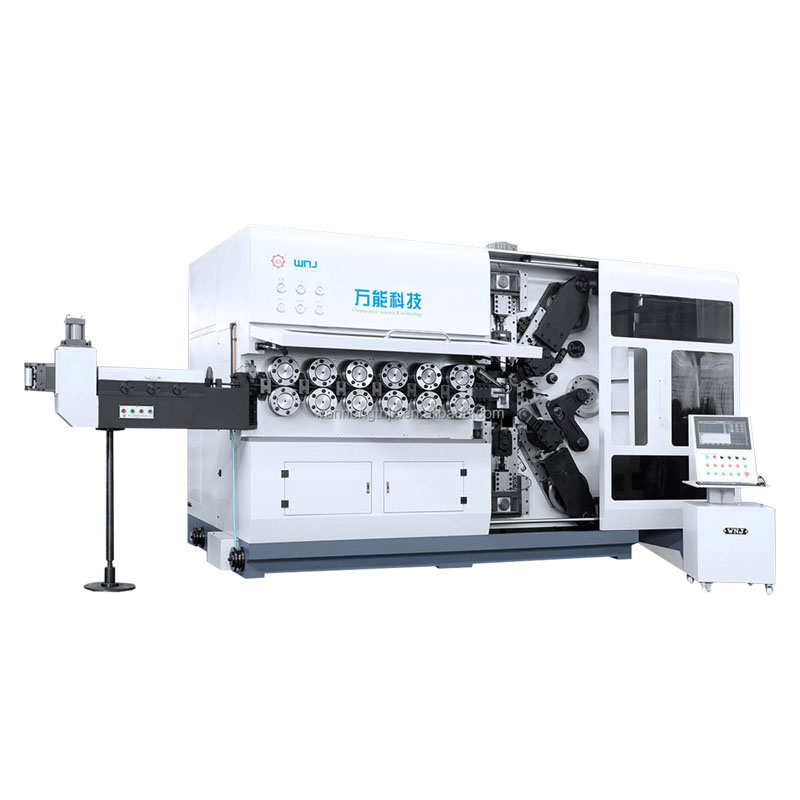

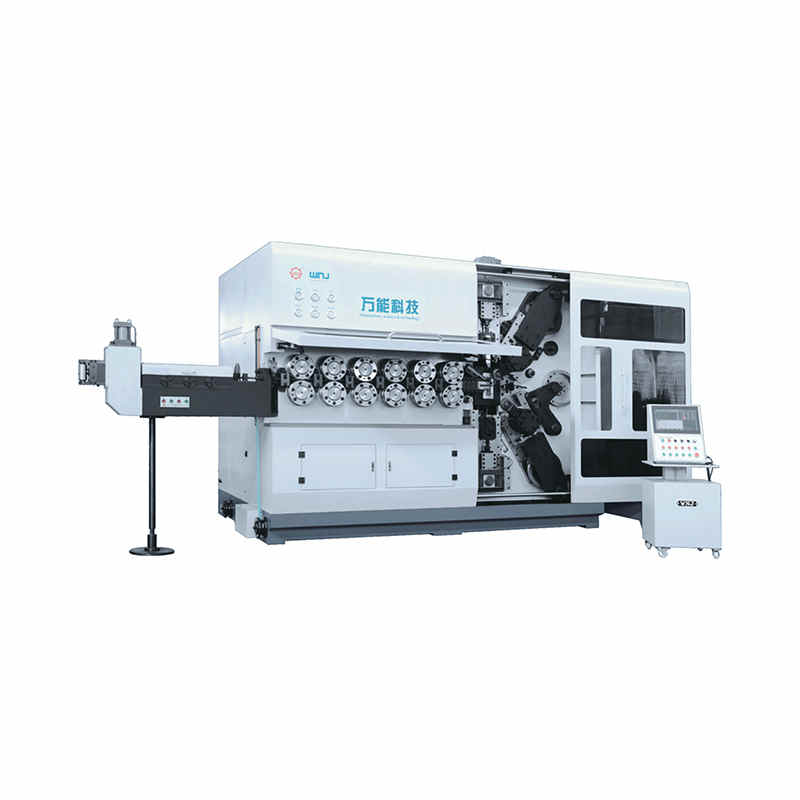

TK-7200-6 7AXIS CNC SPRING COILING MACHINE
TK-7200-6
TK-7200-6 7AXIS CNC SPRING COILING MACHINE
1. Five-axis control: wire feed shaft, cam shaft, upper cutter shaft, lower cutter shaft, and spacing shaft.
2. The five axes can operate synchronously or in a single step.
3. The computer has a Chinese and English interface, which is easy to operate.
4. Equipped with left- and right-hand winding cutters.
5. The cutter can realize straight cutting, half cutting and swing cutting.
6. The computer has automatic programming function.
Mian Technique Parameter
Model |
TK-7200-6 |
Number of CNC axes |
7 axes (wire feed, diameter reduction shift, pitch, cam, upper cutter, lower cutter) |
Steel wire diameter (mm ) |
Φ9-Φ23 |
Maximum outer diameter (mm ) |
Φ260 |
Wire length |
unlimited |
Feeding speed |
87m/min |
Rotation |
about |
Forming method |
double point |
Number of wire feed wheels |
6 pairs |
Camshaft motor (kw) |
15 |
Pitch shaft motor ( kw) |
11 |
Wire feed shaft motor ( kw) |
16*6 |
Upper cutter motor (kw) |
42 |
Lower cutter motor (kw) |
42 |
Machine Dimensions (LxWxH ) |
5100x2430x2800 |
Machine weight (kg) |
35000 |
Power supply |
Three Phase 380V.AC.50HZ |
Location: | Ningbo, China |
Business Type: | Manufacturer, Exporter |
Brands: | WNJ |
Certificate: | CE, ECM, Technology Patent |
Terms of payment and delivery: | pay 40% deposit before producing and 60% balance against copy of documents |
Minimum order quantity: | 5 sets |
Price: | Consultation |
Packing details: | wooden box |
Delivery time: | Consultation |
Payment method: | Common way is by T/T, L/C is also acceptable. |
WNJ is a leading Custom TK-7200-6 7AXIS CNC SPRING COILING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
- Customer orientation is considered with customized solutions
- Offer services to overseas customers with global agent
- A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
- Over 200 skilled worker,50 technicians and one group of 20 engineers
- Easy reconfiguration and adaptation to new production/manufacturing realities;
- Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
- Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
- Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
