Custom WNM9-2E CNC DOUBLE TRAY SPRING END GRINDING MACHINE

 WNM9-2E CNC DOUBLE TRAY SPRING END GRINDING MACHINE

WNM9-2E CNC DOUBLE TRAY SPRING END GRINDING MACHINE

WNM9-2E

CCNC DOUBLE TRAY SPRING END GRINDING MACHINE

+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Function point

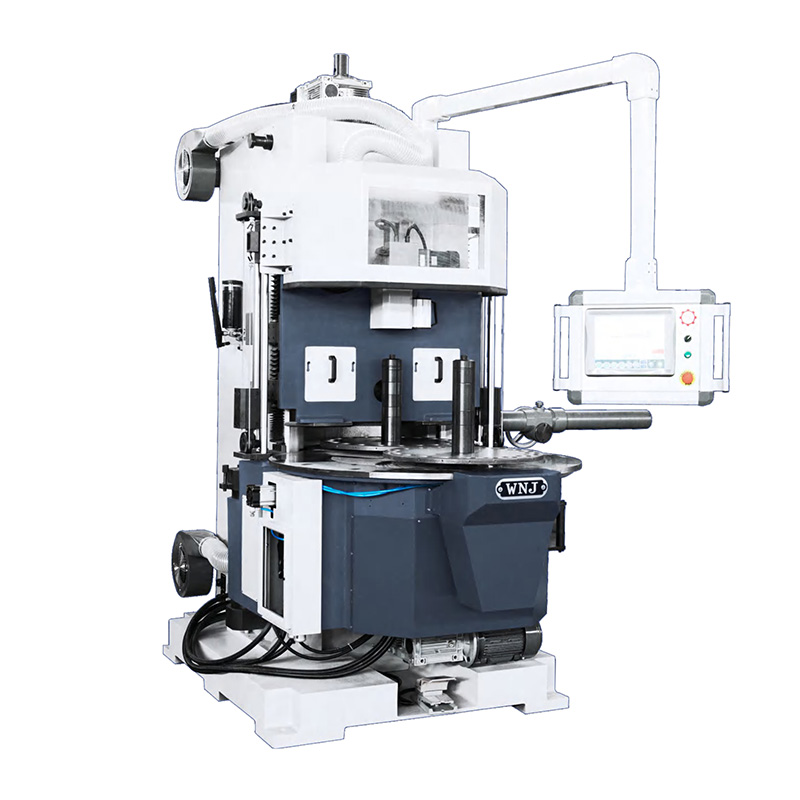

    WNM9-2E CNC spring end grinding machine is the latest developed double tray spring grinding machine based on the advanced CNC end grinding technology at home and abroad. The cylinder is used to realize the circular conversion of the feeding tray. The spring can be loaded and unloaded while grinding.lt adopts servo motor to control the grinding wheel and has automatic inspection,compensation and alarming. The feed speed, feed rate, grinding pressure, feeding tray speed, all can be programmed on the computer, it's convenient to operate and has a high efficiency. lt is the ideal equipment for mass production of double-end grinding spring.



    Main Technique Parameter

    Style

    WNM9-2E

    Wire Diameter(mm)

    Φ1~Φ9

    Diameter of Grinding Spring(mm)

    Φ10~Φ80

    Height of Grinding Spring(mm)

    10-400

    Grinding Wheel Size(Outside x Height)

    Φ450xΦ80x65

    Total Motor Power(5PCS)(kw)

    23

    Grinding Head Speed(n/min)

    1400

    Machine working state size(LxWxH)(mm)

    2250x2400x2750

    Main Host Weight(kg)

    4300

    Voltage

    3AC 380V/50HZ
