TK-760

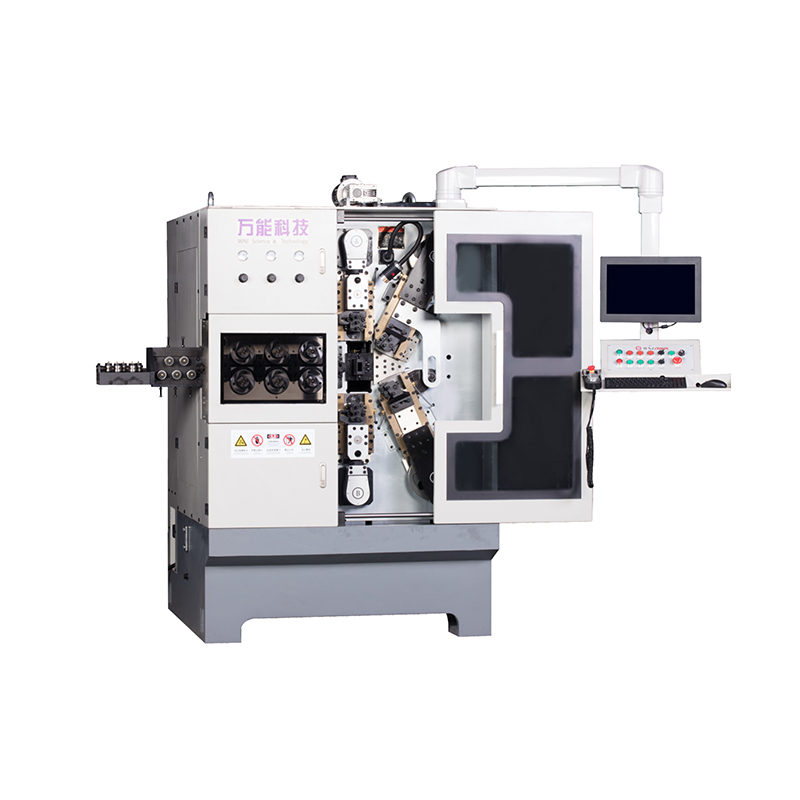

TK-760 6-7AXES CNC SPRING COILING MACHINE
Function point
1. Controlled with six or seven axes: wire feed axis, pitch axis, upper variable diameter lower variable diameter, upper cutter axis, lower cutter axis and core pulling axis.
2. The six axes can work single-step or synchronously.
3. Computer interface displayed in Chinese and English which makes the operation easy.
4. Equipped with right and left rotation cutter frame.
5. Cutter can perform straight cut, opposite cut, twist cut and swing cut.
6. Computer has automatic programming functions.
Main Technique Parameter
|
Style |
TK-760 |
|
Number of Axes |
Six-seven axes (wire feed axis, pitch axis, upper variable diameter, lower variable diameter, upper cutter axis, lower cutter axis and core pulling axis) |
|
Wire diameter (Carbon steel wire) (mm) |
Φ2〜Φ6 |
|
Total power(kw) |
36 |
|
Oil Quenching Line≤1700 |
≤Φ5 |
|
Max. Outside Diameter(mm) |
Φ80 |
|
Wire Feed Length |
No Limitation |
|
Wire Feed Speed(m/min) |
95 |
|
Rotation |
Left or Right |
|
Forming Way |
Double Points |
|
Number of Wire Feed Axes |
3 Pairs |
|
Variable Diameter Axis Motor (kw) |
2.7×2 |
|
Pitch Axis Motor(kw) |
2 |
|
Wire Feed Axis Motor(kw) |
15 |
|
Cutter motor(kw) |
5.5×2 |
|
Core Pulling Motor(kw) |
1 |
|
Machine working state size(LxWxH) |
2350x2300x2065 |
|
Main Host Weight(kg) |
4020 |
|
Voltage |
3AC 380V/50HZ |
| Location: | Ningbo, China |
| Business Type: | Manufacturer, Exporter |
| Brands: | WNJ |
| Certificate: | CE, ECM, Technology Patent |
| Terms of payment and delivery: | pay 40% deposit before producing and 60% balance against copy of documents |
| Minimum order quantity: | 5 sets |
| Price: | Consultation |
| Packing details: | wooden box |
| Delivery time: | Consultation |
| Payment method: | Common way is by T/T, L/C is also acceptable. |
WNJ is a leading Custom TK-760 6-7AXES CNC SPRING COILING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
- Customer orientation is considered with customized solutions
- Offer services to overseas customers with global agent
- A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
- Over 200 skilled worker,50 technicians and one group of 20 engineers
- Easy reconfiguration and adaptation to new production/manufacturing realities;
- Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
- Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
- Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
