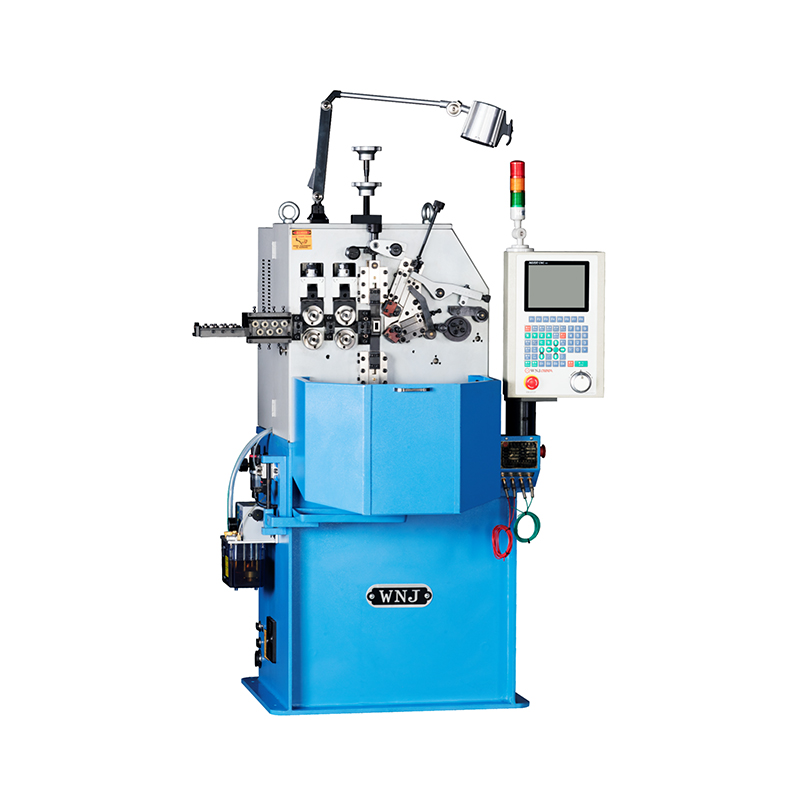

TK-320 3AXIS CNC SPRING COILING MACHINE

TK-320

TK-320 3AXIS CNC SPRING COILING MACHINE


E-mail: info@chinathjx.com

Skype: wn_machine

Whatsapp: 008615657581166

Details

Function point

1.Z axis for pitch control seperately.
2.Three axis can work in high speed single-step or synchronously.
3.Computer interface displayed in Chinese and English which makes the operation easy.
4.Equipped with right or left-handed winding blade rest.
5.Make sample by hand wheel.





Mian Technique Parameter

Style

TK-320A/B

Wire Diameter

Φ0.5-Φ2

Max.Outside Diameter

Φ40

Wire Feed Speed

100m/min(max)

Wire Feed Instruction Value

+0.01~±9999.99mm

Cam Instruction Value

±0.1°~±359.9°

Wire Feed Servo Motor

2.7

Cam Servo Motor

2.7

Pitch Servo Motor

0.4

Machine Weight

570

Voltage

Three Phase 380V.AC.50HZ

Machine Dimension(LxWxH)

1040x800x1680
