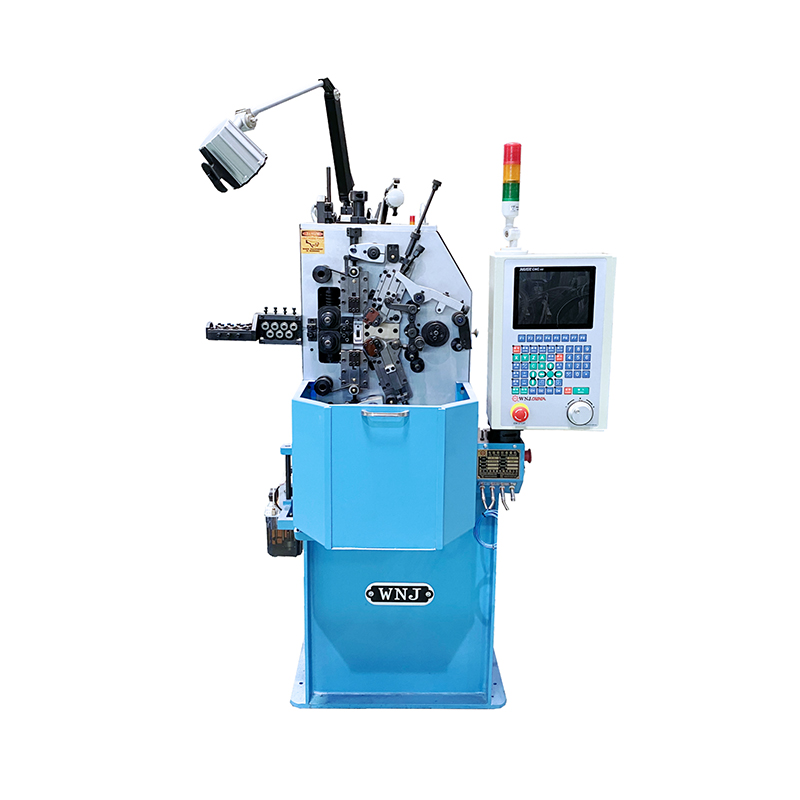

TK-312 3AXES CNC SPRING COILING MACHINE
  • TK-312 3AXES CNC SPRING COILING MACHINE

TK-312 3AXES CNC SPRING COILING MACHINE

TK-312

TK-312 3AXES CNC SPRING COILING MACHINE

+86-575-83030220 Contact Us


PREV：SLB-2800 WIRE FEEDING RACK
NEXT：No next product
  • Description
  • Additional Information

  • Function point

    1. Three axes can work in high speed single-step or synchronously.

    2. Computer interface displayed in Chinese and English which makes the operation easy.

    3. Equipped with right and left rotation cutter frame.

    4. Make sample by hand wheel.





    Main Technique Parameter

    Style

    TK-312

    Wire diameter(Carbon steel wire) (mm)

    Φ0.2~Φ1.2

    Max.Outside Diameter (mm)

    Φ30

    Total power(kw)

    3.4

    Wire Feed Speed

    100m/min(max)

    Wire Feed Servo Motor

    1.5

    Cam Servo Motor(kw)

    1.5

    Pitch Servo Motor(kw)

    0.4

    Machine working state size(LxWxH) (mm)

    1050x960x1550

    Main Host Weight(kg)

    430

    Voltage

    3AC 380V/50HZ

About Company

WNJ is a leading Custom TK-312 3AXES CNC SPRING COILING MACHINE factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
