ZW-880

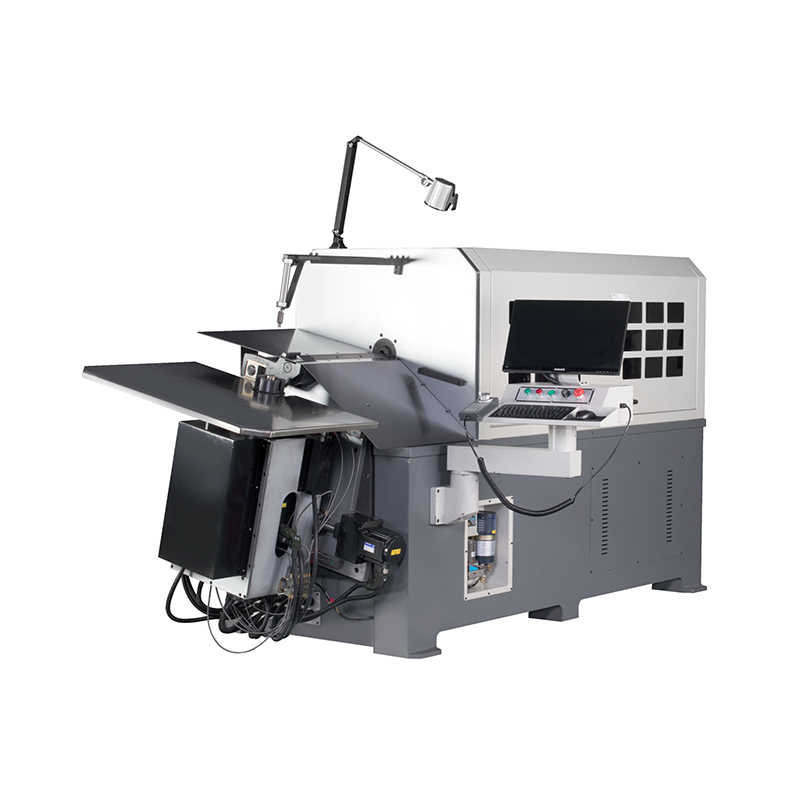

ZW-880 8AXES CNC SPRING WIRE BENDING MACHINE
ZW-880
ZW-880 8AXES CNC SPRING WIRE BENDING MACHINE
Function point
1. With eight axes linkage design, fast speed of machine adjustment, high precision and good stability.
2. Controlled with eight axes, can work single-step or synchronously.
3. Wire feed adopts rotary wire structure, which makes more stable and convenient.
4. Computer interface displayed in Chinese and English which makes the operation easy.5.
5. Can make different kinds of wire bending, forming of different products.
Main Technique Parameter
Style |
ZW-880 |
Wire diameter(Carbon steel wire)(mm) |
Φ2~Φ8 soft wire Φ2~Φ6 hard wire |
Total power(kw) |
18.5 |
Max.Wire Feed Speed(m/min) |
60 |
Number of Axes |
8 Axis |
Number of Wire Feed Axes |
3 Pairs |
Wire Feed Servo Motor(kw) |
4.5 |
Rotary Wire Servo Motor(kw) |
4.5 |
Cutter Servo Motor(kw) |
2.0 |
Bending Servo Motor(kw) |
1.5x2PCS |
Lift & Tray Servo Motor(kw) |
1.5x3PCS |
Bending Head & Body Distance(mm) |
700 |
Machine working state size(LxWx H) (mm) |
1900x3700x1800 |
Main Host Weight(kg) |
3200 |
Voltage |
3AC 380V/50HZ |
Location: | Ningbo, China |
Business Type: | Manufacturer, Exporter |
Brands: | WNJ |
Certificate: | CE, ECM, Technology Patent |
Terms of payment and delivery: | pay 40% deposit before producing and 60% balance against copy of documents |
Minimum order quantity: | 5 sets |
Price: | Consultation |
Packing details: | wooden box |
Delivery time: | Consultation |
Payment method: | Common way is by T/T, L/C is also acceptable. |
WNJ is a leading Custom CNC Spring Bending Machine Manufacturers in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
The company has awarded as the only one national new technology enterprise in spring machinery industry, and also the main member of china spring association.
- Customer orientation is considered with customized solutions
- Offer services to overseas customers with global agent
- A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
- Over 200 skilled worker,50 technicians and one group of 20 engineers
- Easy reconfiguration and adaptation to new production/manufacturing realities;
- Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
- Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
- Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
