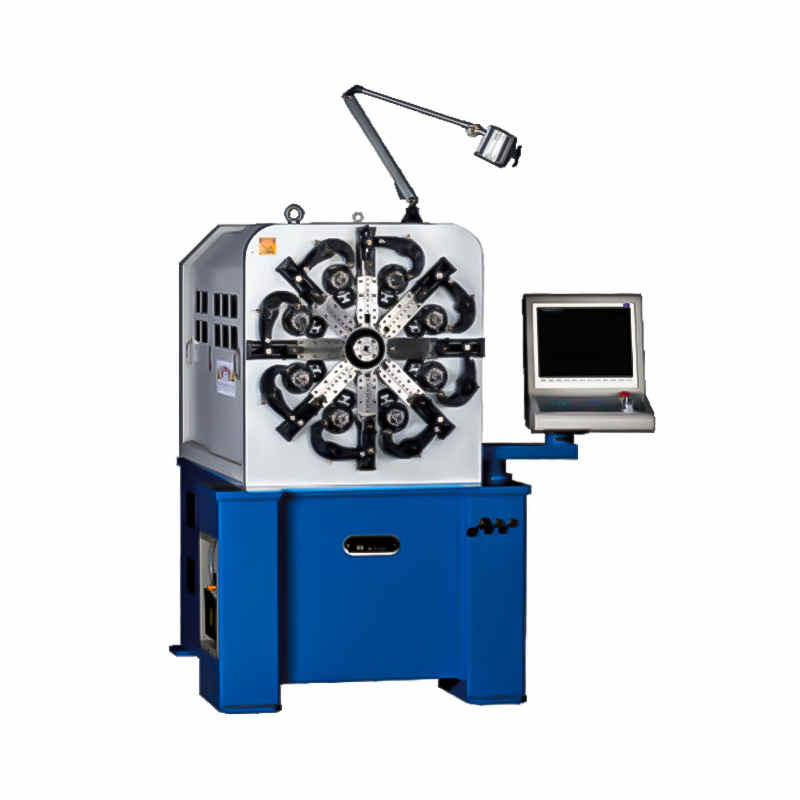

CNC-625Z 5AXES CNC SPRING FORMING MACHINE
  • CNC-625Z 5AXES CNC SPRING FORMING MACHINE

CNC-625Z 5AXES CNC SPRING FORMING MACHINE

CNC-625Z

CNC-625Z 5AXES CNC SPRING FORMING MACHINE

E-mail: [email protected]

+86-575-83030220 Contact Us


PREV：SLB-2800 WIRE FEEDING RACK
NEXT：No next product
  • Description
  • Additional Information

  • Function point

    1. Controlled with five axes, can work single-step or synchronously.

    2. Wire feeding adopts rotary wire mechanism, making debugging more convenient.

    3. Computer interface displayed in Chinese and English which makes the operation easy.

    4. Can make double torsion spring, straight spring, pagoda-shaped spring, rectangle spring, wire forming, scroll spring and special-shaped spring, etc.



    Main Technique Parameter

    Style

    CNC-625Z

    Wire diameter(Carbon steel wire)(mm)

    Φ0.3-Φ2.5
    Max. Outside Diameter(mm)

    50
    Total Power(kw)

    9.5
    Number of Axes

    5 Axis
    Number of Wire Feed Axes

    2 Pairs
    Wire Feed Servo Motor(kw)

    2.7
    Rotary Wire Servo Motor(kw)

    2.7
    Rotary Mandrel Servo Motor(kw)

    1
    Cam Axis Servo Motor(kw )

    2.7
    Machine working state size(LxWxH)(mm)

    1500x1700x1800
    Main Host Weight(kg)

    1590

    Voltage

    3AC 380V/50HZ
