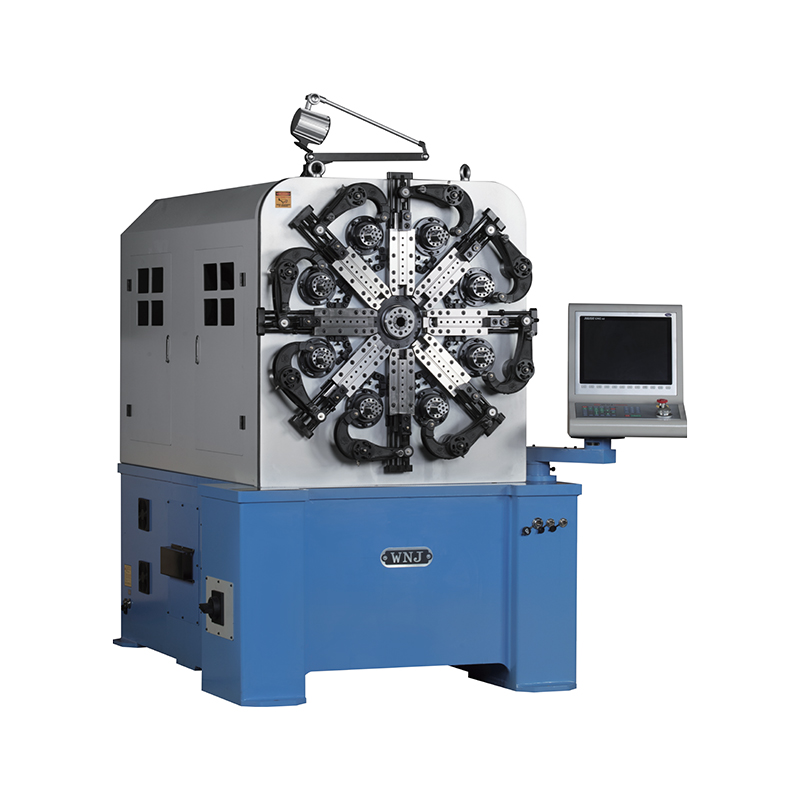

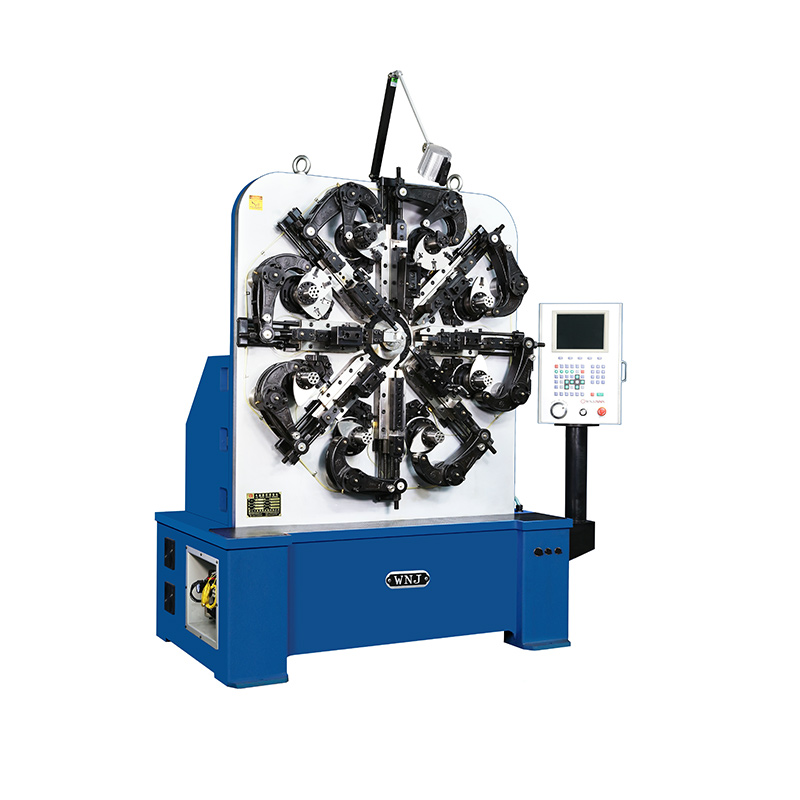

CNC-650 3AXES CNC SPRING FORMING MACHINE
  • CNC-650 3AXES CNC SPRING FORMING MACHINE

CNC-650 3AXES CNC SPRING FORMING MACHINE

CNC-650

CNC-650 3AXES CNC SPRING FORMING MACHINE

+86-575-83030220 Contact Us


PREV：SLB-2800 WIRE FEEDING RACK
NEXT：No next product
  • Description
  • Additional Information

  • Function point

    1. Controlled with four axes, can work single-step or synchronously.

    2. Equipped with precision detection and tracking device, it will stop automatically when the unqualified products is found.

    3. The parameters(outside diameter, angle, etc.) can be modified at any time according to the working status.

    4. Can make double torsion spring, straight spring,pagoda-shape spring, rectangle spring, wire forming, scroll spring and other different special-shaped spring etc.



    Main Technique Parameter

    Style

    CNC-650

    Wire diameter(Carbon steel wire)(mm)

    Φ2〜Φ5

    Max.Outside Diameter(mm)

    Φ100

    Total Power(kw)

    		 23

    Number of Axes

    		 4

    Wire Feed Servo Motor(kw)

    		 11

    Cam Axis Servo Motor(kw)

    		 11

    Rotary Mandrel Servo Motor(kw)

    		 1

    Machine working state size(LxWxH)(mm)

    		 2180x1500x2150

    Main Host Weight(kg)

    		 3260

    Voltage

    3AC 380V/50HZ
