Custom CNC-1025B、 1035 10AXES CNC SPRING FORMING MACHINE

CNC-1025B、 1035 10AXES CNC SPRING FORMING MACHINE

CNC-1025B、 1035 10AXES CNC SPRING FORMING MACHINE

CNC-1025B、 1035

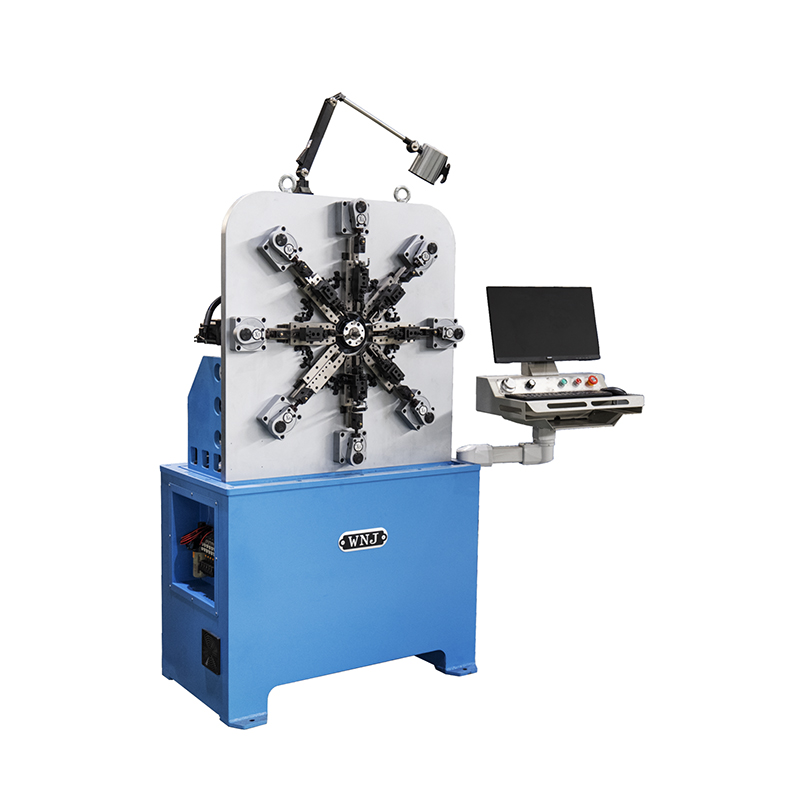

CNC-1025B、 1035 10 AXES CNC SPRING FORMING MACHINE
+86-575-83030220 Contact Us


  • Description
  • Additional Information
  • Function point

    1. Adopts a camless and modular design, with fast adjustment speed, low noise, high accuracy, and good stability.

    2. Controlled with ten axes, can work single-step or synchronously.

    3. The slider adopts a precision linear guide mode and can be equipped with free hand, spinner and servo cutter.

    4. Computer interface displayed in Chinese and English which makes the operation easy.

    5. Can make special-shaped spring, torsion spring, tension spring and stationary products etc.



    Main Technique Parameter

    Style

    CNC-1025B

    CNC-1035

    Wire diameter(Carbon steel wire)(mm)

    Φ0.3〜Φ2.5

    Φ0.5〜Φ3.5

    Max.Slide Stroke(mm)

    70 80

    Total Power(kw)

    11.7 20.9

    Max.Wire Feed Speed(m/min )

    100 85

    Number of Axes

    10 Axis

    10 Axis

    Number of Wire Feed Axes

    2 Pairs

    3 Pairs

    Wire Feed Servo Motor(kw)

    2.7 5.5

    Core Axis Servo Motor(kw)

    1 1

    Slider Servo Motor(kw)

    1x8

    1.8X8

    Free Hand Servo Motor(kw)

    0.4(Standard)

    1.5(Optional)

    Machine working state size(LxWxH)(mm)

    1660x845x1750

    1900x900x1900

    Main Host Weight (kg)

    790

    1500

    Voltage

    3AC 380V/50HZ

    3AC 380V/50HZ
