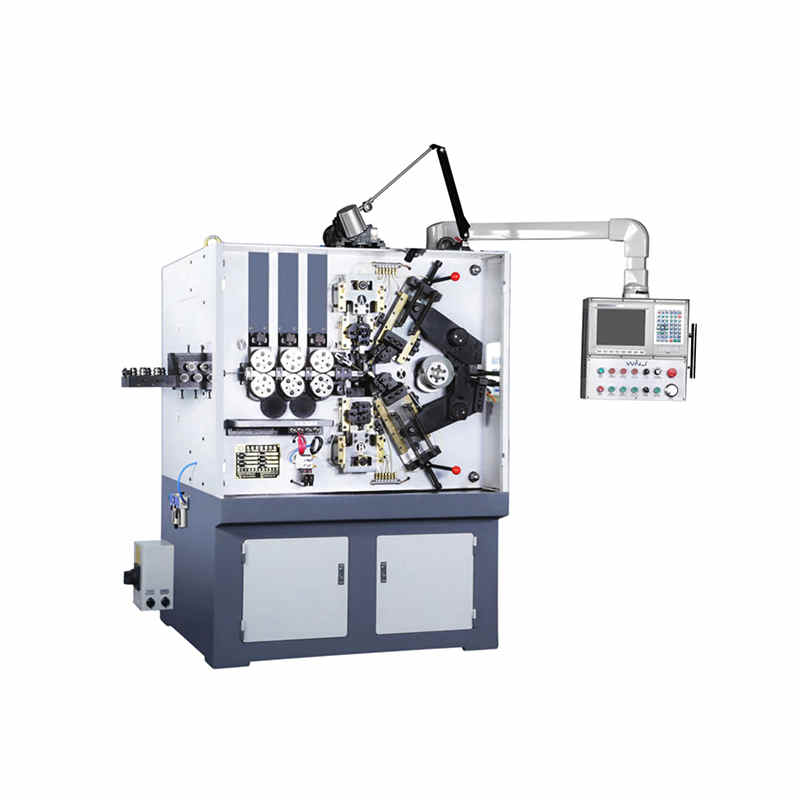

TK-550B 5AXES CNC SPRING COILING MACHINE
  • TK-550B 5AXES CNC SPRING COILING MACHINE

TK-550B 5AXES CNC SPRING COILING MACHINE

TK-550B

TK-550B 5AXES CNC SPRING COILING MACHINE

+86-575-83030220 Contact Us
  • Description
  • Additional Information

  • Function point

    1. Controlled with five axes: wire feed axis,cam axis, upper cutter axis,lower cutter axis and pitch axis.

    2. The five axes can work single-step or synchronously.

    3. Computer interface displayed in Chinese and English which makes the operation easy.

    4. Equipped with right and left rotation cutter frame.

    5. Cutter can perform straight cut, opposite cut, twist cut and swing cut.

    6. Computer has automatic programming function.





    Main Technique Parameter

    Style

    TK-550B

    Number of Axes

    Five axes(wire feed, pitch, cam, upper cutter, lower cutter)

    Wire diameter(Carbon steel wire)(mm)

    Φ1.5~Φ5

    Total power(kw)

    32

    Oil Quenching Line(≤1900N/mm² )

    ≤Φ3.5

    Max.Outside Diameter(mm)

    Φ65

    Wire Feed Length

    No Limitation

    Wire Feed Speed

    75m/min

    Rotation

    Left or Right

    Forming Way

    Double Points

    Number of Wire Feed Axes

    3 Pairs

    Cam Axis Motor(kw)

    4.5

    Pitch Axis Motor(kw)

    2

    Wire Feed Axis Motor(kw)

    15

    Cutter motor(kw)

    4.5x2

    Machine working state size(LxWxH)(mm)

    2350x1600x2000

    Main Host Weight(kg)

    2480

    Voltage

    3AC 380V/50HZ
