What is a spring temper furnace? What is its working principle?

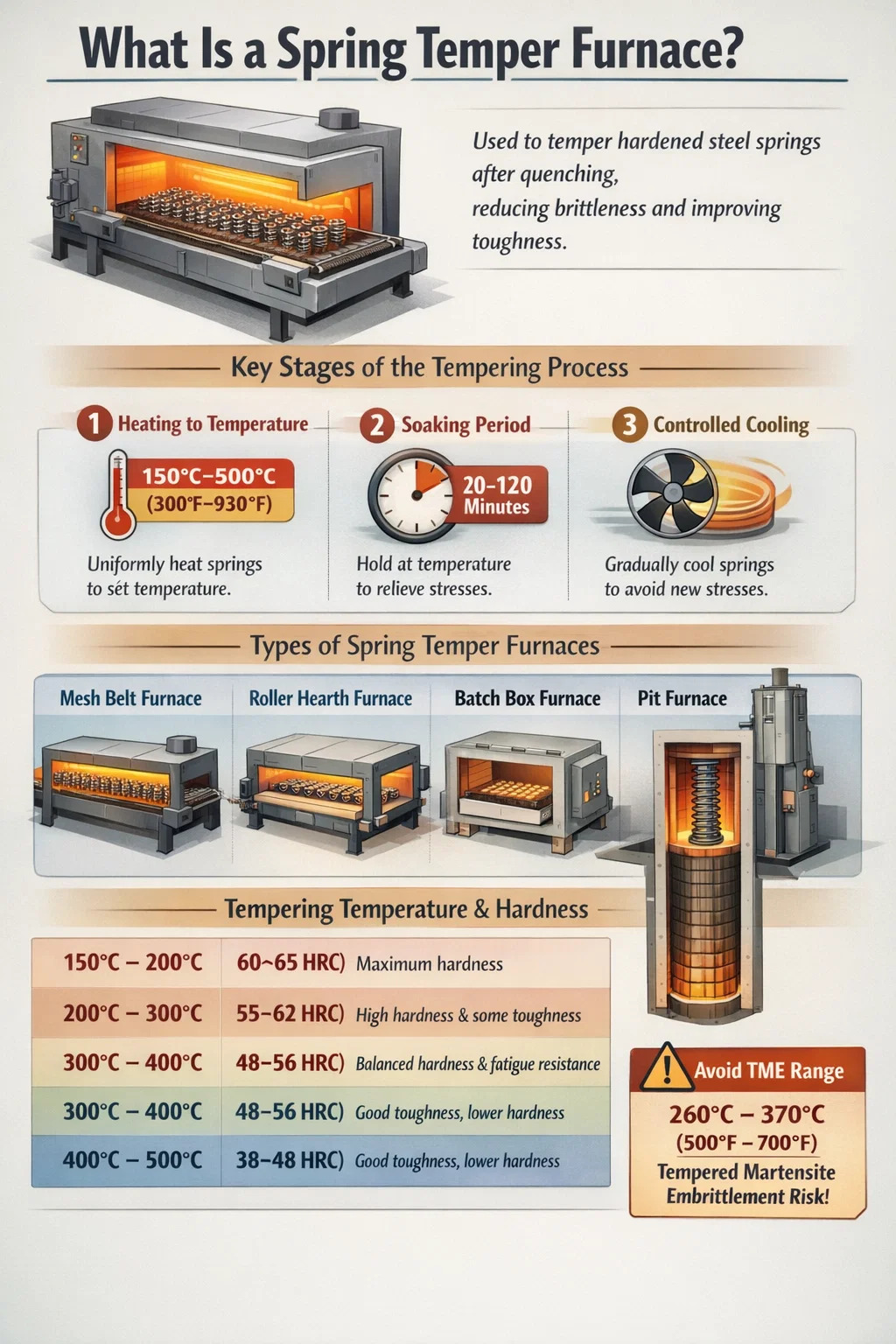

What Is a Spring Temper Furnace?

A spring temper furnace is a type of industrial heat treatment furnace specifically designed to temper steel springs after hardening. Its primary job is to reheat hardened spring steel to a controlled temperature — typically between 150°C and 500°C (300°F to 930°F) — hold it there for a defined period, and then allow it to cool in a controlled manner. This process relieves internal stresses introduced during quenching and hardening, adjusts hardness to a specified range, and restores a degree of toughness and elasticity that would otherwise be absent in a fully hardened spring.

Without tempering, a hardened spring is brittle and prone to sudden fracture under load. The spring temper furnace is what transforms a hard but fragile component into a durable, load-bearing, fatigue-resistant part capable of performing reliably across millions of compression or extension cycles.

In production environments, spring tempering furnaces are found across automotive manufacturing, aerospace, precision instrument production, and heavy machinery sectors. They come in several configurations — mesh belt continuous furnaces, roller hearth furnaces, batch box furnaces, and pit furnaces — each suited to different spring geometries, production volumes, and alloy specifications.

The Working Principle of a Spring Temper Furnace

The working principle of a spring temper furnace centers on precise thermal cycling. After steel springs are hardened — typically by austenitizing at temperatures above 800°C (1470°F) and then rapidly quenching in oil, water, or polymer — the martensitic microstructure formed is extremely hard but highly stressed and brittle. Tempering in a spring temper furnace addresses this by triggering a sequence of solid-state metallurgical reactions.

Stage 1: Heating to the Tempering Temperature

The furnace heats the spring load uniformly to the target tempering temperature. Uniformity is critical — a temperature differential of even ±10°C across the load can produce inconsistent hardness values. High-quality spring temper furnaces use multiple independently controlled heating zones, forced convection fans, and high-density heating elements or radiant tubes to achieve temperature uniformity within ±5°C across the working chamber.

Stage 2: Soaking — Holding at Temperature

Once the target temperature is reached throughout the entire spring cross-section, the furnace maintains that temperature for the soak period. Soaking allows carbon atoms trapped in the martensite lattice to begin diffusing and forming carbide precipitates. This carbide precipitation is what relieves lattice strain, reduces brittleness, and restores ductility. Soak times vary depending on section thickness and spring size — small wire springs may only need 20 to 30 minutes, while heavy coil springs or torsion bars may require 60 to 120 minutes or more.

Stage 3: Controlled Cooling

After soaking, the springs are cooled — either by air cooling inside the furnace, by a controlled atmosphere cooling vestibule, or by removal to ambient air. The rate of cooling after tempering is generally less critical than during hardening, but must still be managed. Rapid cooling from the tempering temperature can re-introduce surface stresses, so most spring temper furnaces allow gradual cooling, especially for larger spring cross-sections.

Atmosphere Control During Tempering

Many spring temper furnaces operate under a controlled atmosphere — typically nitrogen, endothermic gas, or a nitrogen-methanol blend — to prevent surface oxidation and decarburization during the tempering cycle. Surface oxidation can degrade fatigue life and corrosion resistance, two properties that are paramount in spring applications. Protective atmosphere furnaces add complexity and cost but are standard equipment in precision spring manufacturing for automotive valve springs, aircraft landing gear springs, and surgical instrument springs.

Tempering Temperature and Its Effect on Spring Properties

The tempering temperature selected in a spring temper furnace directly determines the final mechanical properties of the finished spring. This is not a minor adjustment — a difference of 50°C in tempering temperature can shift hardness by 3 to 6 HRC points and dramatically alter tensile strength and elongation values.

One critical zone to avoid is the tempered martensite embrittlement (TME) range, typically between 260°C and 370°C (500°F to 700°F). Tempering within this range can actually reduce toughness rather than improve it, a phenomenon caused by the precipitation of carbides at prior austenite grain boundaries. Responsible spring temper furnace operators design their tempering cycles to either stay below or exceed this range rather than dwelling in it. This is one reason why automotive valve spring specifications frequently specify tempering at or above 380°C to 420°C.

Types of Spring Temper Furnaces and Their Configurations

The spring industry uses several distinct furnace configurations for the spring tempering process. Each has technical advantages that make it better suited to specific spring types, production volumes, or alloy systems.

Mesh Belt Continuous Tempering Furnace

The mesh belt furnace is the most common configuration in high-volume spring manufacturing. Springs are loaded onto a stainless steel mesh belt that carries them continuously through the heating, soaking, and cooling zones. Production rates can reach 500 to 2,000 kg/hour depending on the furnace length and width. Belt speeds and zone temperatures are independently adjustable, allowing precise control of soak time and temperature profile. Mesh belt furnaces are ideal for small to medium coil springs, wire form springs, and flat springs. The main limitation is that oversized or heavy springs can deform the belt over time.

Roller Hearth Tempering Furnace

Roller hearth furnaces use water-cooled or alloy rollers to convey springs through the furnace on trays or fixtures. They handle heavier loads than mesh belt systems, accommodate larger spring assemblies, and allow more precise atmosphere control. These furnaces are common for tempering automotive suspension coils, stabilizer bars, and torsion springs. Working temperatures range from ambient up to 700°C (1290°F) in most roller hearth designs, with very tight temperature uniformity — typically ±4°C — achievable in modern systems.

Batch Box Tempering Furnace

Batch furnaces are loaded with a fixed charge of springs, brought to temperature, soaked, and then unloaded. They offer maximum flexibility — the same furnace can process a wide variety of spring sizes and specifications on different shifts. This makes them popular in job shops and medium-volume production environments. The trade-off is lower throughput and the need for a thermal soak period long enough to ensure even temperature through the entire batch. A well-designed batch box furnace used for spring tempering will typically feature forced recirculation fans to ensure temperature uniformity within ±5°C even when loaded with a dense charge.

Pit Furnace for Long Springs and Torsion Bars

For long springs, torsion bars, or leaf spring bundles that cannot be easily laid flat, vertical pit furnaces provide a practical solution. The spring or spring assembly is suspended vertically in the furnace chamber. This prevents distortion from gravity, which is a real concern when tempering long bars or multi-leaf spring packs. Pit furnaces for spring tempering are typically gas-fired and may reach depths of 2 to 6 meters, accommodating very long components in a compact surface footprint.

Salt Bath Tempering Furnace

Salt bath tempering furnaces use molten nitrate or chloride salts as the heating medium. The springs are immersed in the liquid salt bath, which provides extremely rapid and uniform heat transfer — far faster than air convection. This results in very short cycle times and excellent temperature consistency. Salt bath furnaces are particularly valued for tempering precision springs where tight hardness tolerances (±1 HRC) are required. The main operational challenges are salt contamination management, fume extraction, and the hazard potential of molten salts at operating temperatures of 160°C to 550°C.

Key Components Inside a Spring Tempering Furnace

Understanding what is inside a spring temper furnace explains why some furnaces produce better results than others. Each component contributes to the temperature uniformity, atmosphere integrity, and repeatability that determine final spring quality.

• Heating Elements: Resistance heating elements (silicon carbide, molybdenum disilicide, or metallic alloy elements) or radiant tubes (in atmosphere furnaces) provide the heat input. Element arrangement and density directly affect temperature uniformity across the working chamber.
• Forced Convection Fans: Recirculation fans — often powered by motors rated from 0.75 kW to 7.5 kW — push heated air or atmosphere gas across the spring load continuously. This is the single most important factor for temperature uniformity in batch and continuous furnaces operating below 700°C.
• Temperature Controllers and Thermocouples: Multiple Type K or Type N thermocouples distributed across the furnace zones feed data to PID controllers or programmable logic controllers (PLCs). Modern spring temper furnaces log temperature data continuously and can execute multi-ramp, multi-soak programs automatically.
• Insulation: Ceramic fiber insulation or dense refractory brick lining reduces heat loss and shortens heat-up times. High-quality furnaces achieve thermal efficiency levels where energy consumption per kilogram of spring tempered is as low as 0.15 to 0.25 kWh/kg.
• Atmosphere Gas Inlet and Exhaust Systems: In controlled-atmosphere designs, gas manifolds, flow meters, and burn-off tubes manage the protective gas supply and safely combust any exhaust gases at the furnace exits.
• Conveyor System: In continuous furnaces, the mesh belt or roller system must withstand repeated thermal cycling without warping. High-alloy steels such as 314 stainless or Inconel are common choices for belts operating at sustained temperatures above 400°C.

Spring Steel Alloys and How They Respond to Tempering

The spring tempering process is not one-size-fits-all. Different spring steel alloys respond differently to heat treatment, and the spring temper furnace must be set up with the correct temperature profile for the specific alloy being processed.

High Carbon Spring Steel (e.g., 1065, 1075, 1080, 1095)

High-carbon steels are the most common spring materials and are the primary targets for spring temper furnaces. Their carbon content of 0.60% to 1.00% gives them the ability to achieve very high hardness after quenching. These grades are typically tempered between 200°C and 400°C. At 300°C, 1080 spring steel typically achieves a tensile strength of around 1,800 to 2,000 MPa with hardness in the 52 to 57 HRC range.

Chromium-Silicon Steel (e.g., 9254, 9260)

Silicon-chromium alloys offer superior resistance to relaxation under load — a critical property for valve springs and suspension springs. These grades are typically tempered at higher temperatures, often 420°C to 480°C, to fully activate the strengthening mechanisms provided by silicon and chromium. At these temperatures, the spring temper furnace must maintain very tight uniformity because the tempering response curve is steep — small temperature deviations produce noticeable hardness scatter.

Chromium-Vanadium Steel (e.g., 6150)

6150 is a popular alloy for automotive and industrial coil springs and flat springs. Vanadium additions refine the grain structure and increase hardenability. Tempering temperatures of 400°C to 500°C are typical, resulting in tensile strengths in the range of 1,600 to 1,900 MPa depending on section size and specific tempering temperature.

Stainless Spring Steel (e.g., 17-7 PH, 301, 302)

Stainless spring steels require special consideration. Precipitation-hardening grades such as 17-7 PH are strengthened by aging treatments at specific temperatures — commonly 480°C (Condition CH900) or 510°C (Condition RH950) — rather than by the conventional quench-and-temper cycle. Spring temper furnaces used for stainless springs must provide very accurate atmosphere control to prevent chromium depletion at the surface, which would compromise corrosion resistance.

Quality Control in the Spring Tempering Process

A spring temper furnace is only as good as the quality control system surrounding it. Spring manufacturers operating to automotive or aerospace quality standards maintain rigorous process controls around their tempering operations.

Temperature Uniformity Surveys (TUS)

Most aerospace and automotive specifications require periodic temperature uniformity surveys of the spring temper furnace, typically performed quarterly. In a TUS, calibrated thermocouples are placed at multiple positions across the working zone, and the furnace is run at the standard operating setpoint. The maximum allowable deviation across all measurement points must fall within a specified band — commonly ±5°C for Class 2 furnaces per AMS 2750 (Nadcap pyrometry standard). Furnaces that fail TUS requirements must be recalibrated or repaired before returning to service.

System Accuracy Tests (SAT)

In addition to TUS, furnace temperature control instruments are verified against calibrated reference thermocouples through system accuracy tests performed monthly or at specified intervals. This ensures that the temperature reading displayed by the furnace controller actually matches the real temperature in the working zone.

Hardness Testing of Tempered Springs

After every tempering run, sample springs are hardness tested — typically using Rockwell C scale — to verify that the batch has achieved the specified hardness range. Automotive valve spring specifications, for example, commonly call for hardness of 47 to 52 HRC, and the entire batch may be rejected if samples fall outside this window.

Load Testing and Fatigue Testing

For critical applications, springs sampled from tempered batches undergo load deflection testing to confirm spring rate and free length, and fatigue testing to verify that the tempering cycle has produced adequate fatigue life. Automotive valve springs used in high-performance engines are routinely tested to 10 million cycles or more without failure at specified stress levels.

Common Problems in Spring Tempering and How to Resolve Them

Even with well-maintained spring temper furnaces, problems can arise that affect product quality. Identifying these problems and their root causes is essential for consistent production.

• Hardness Scatter Across the Batch: Caused by poor temperature uniformity in the furnace. Resolution involves checking and cleaning recirculation fans, inspecting thermocouple calibration, verifying heating element function, and performing a TUS to identify cold or hot zones.
• Springs Softer Than Specified: Indicates the tempering temperature was too high or the soak time too long. Can also result from a calibration drift in the furnace thermocouple that caused the actual temperature to run above the setpoint. Calibration check and TUS are the first corrective steps.
• Springs Harder Than Specified: Points to tempering temperature lower than intended, or soak time too short. A thermocouple positioned too close to a heating element rather than in the load zone can give falsely high readings and result in undertempering.
• Surface Oxidation or Discoloration: In atmosphere-controlled furnaces, oxidation suggests an atmosphere leak or inadequate purge before the heating cycle. In open-air furnaces, heavy scale on spring surfaces may indicate excessive temperature or soak time. Surface oxidation can reduce fatigue life by acting as a stress concentration site.
• Spring Distortion: Heavy springs can sag or warp if supported improperly on the belt or tray, especially at higher tempering temperatures. Using custom fixtures or hanging configurations (as in pit furnaces) eliminates gravity-induced distortion.
• Premature Spring Fatigue Failures in Service: If springs are failing in fatigue earlier than expected, the root cause is often insufficient tempering — leaving residual tensile stresses from quenching — or tempering within the embrittlement range (260°C to 370°C). Process audit against the actual recorded furnace data is the diagnostic starting point.

Energy Efficiency and Modern Advances in Spring Temper Furnace Design

Modern spring temper furnaces are significantly more energy-efficient than equipment from even 20 years ago. Advances in insulation materials, heating element technology, and combustion systems have reduced specific energy consumption substantially.

Ceramic Fiber Insulation

Ceramic fiber lining modules reduce furnace wall heat storage and heat loss compared to dense refractory brick. In a retrofit from brick to ceramic fiber insulation, energy savings of 20% to 40% are commonly reported, along with faster heat-up times that increase furnace availability and throughput.

Variable Frequency Drives on Fans and Conveyors

Fitting variable frequency drives (VFDs) to recirculation fan motors and conveyor drives allows fan speed and belt speed to be precisely matched to the production rate and spring load, reducing unnecessary energy consumption during idle periods or partial loads.

Waste Heat Recovery

In gas-fired spring temper furnaces, recuperators or regenerative burner systems recover heat from exhaust gases and use it to preheat combustion air. Recuperator systems can raise combustion air temperature to 400°C to 600°C, reducing fuel consumption by 25% to 35% compared to cold air combustion.

Industry 4.0 Integration

Modern spring temper furnaces increasingly incorporate data logging, SCADA integration, and even machine learning-based predictive maintenance. Continuous monitoring of element resistance, fan motor current, thermocouple calibration drift, and atmosphere composition allows maintenance teams to schedule interventions before failures occur, reducing unplanned downtime that can disrupt production schedules and expose partially tempered spring batches to quality risks.

Comparing Spring Tempering With Stress Relieving and Annealing

Spring tempering is sometimes confused with stress relieving and annealing. These are related but distinct heat treatment processes, and the differences matter significantly in spring manufacturing.

Cold-wound springs made from pre-hardened wire (such as music wire or hard-drawn wire) typically undergo stress relieving rather than full tempering, because the wire was already tempered at the wire mill. The stress relief treatment at 120°C to 230°C for 20 to 30 minutes removes coiling stresses and stabilizes the spring geometry without significantly altering hardness. Hot-wound springs, by contrast, are wound above the critical transformation temperature and require full hardening and tempering in a spring temper furnace after forming.

Selecting the Right Spring Temper Furnace for Your Application

Choosing a spring temper furnace involves balancing several operational requirements. The wrong choice results in either poor spring quality or an expensive overcapacity investment.

• Production Volume: High-volume operations (above 500 kg/hour) benefit from continuous belt or roller hearth furnaces. Low-to-medium volume job shops with frequent alloy and specification changes are better served by batch furnaces.
• Spring Size and Weight: Small wire springs and flat springs suit mesh belt furnaces. Heavy coil springs, torsion bars, and large suspension springs require roller hearth or pit furnace configurations.
• Temperature Range Required: Most spring tempering falls between 150°C and 500°C, which is within the capability of virtually all industrial tempering furnaces. However, if precipitation-hardening stainless alloys or tool steel springs are also being processed, a furnace capable of reaching 600°C or above may be necessary.
• Atmosphere Requirements: If surface quality and decarburization prevention are critical — as in aerospace or medical spring applications — invest in a controlled-atmosphere spring temper furnace even though the upfront cost is higher.
• Quality Standard Compliance: Suppliers to aerospace or defense customers will need a furnace compliant with AMS 2750 pyrometry requirements. This affects thermocouple type, calibration intervals, controller accuracy, and TUS frequency.
• Energy Source: Electric furnaces offer cleaner operation, easier atmosphere control, and lower maintenance complexity. Gas-fired furnaces offer lower operating energy cost in regions where natural gas is inexpensive, but require more infrastructure for burner maintenance and exhaust management.
