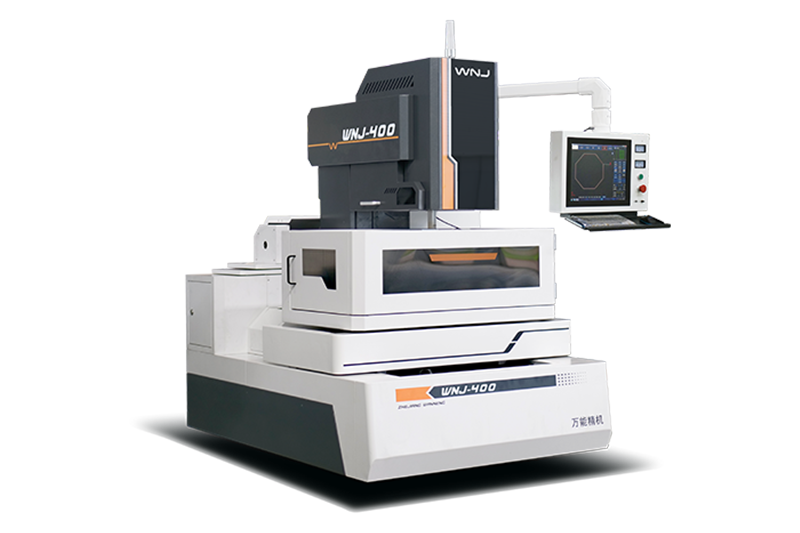

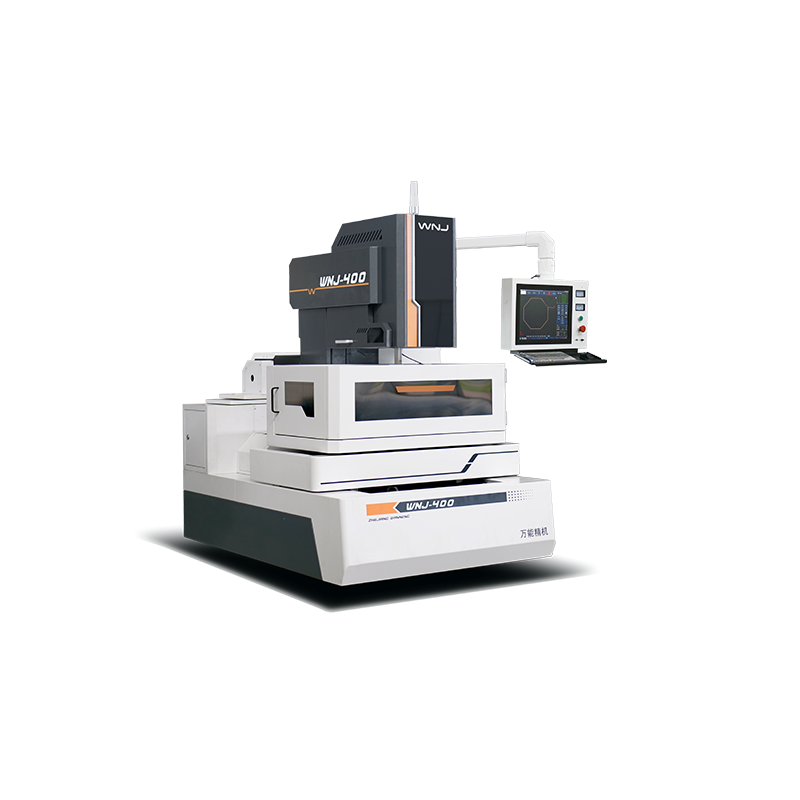

WNJ Series High Precision WEDM

WNJ Series High Precision WEDM

WNJ-400 WNJ500 WNJ-530 WNJ-640 WNJ-630 WNJ-800 WNJ-1080 WNJ-1200

WNJ Series High Precision WEDM

+86-575-83030220 Contact Us
  • Description
  • Additional Information

  • Feature

    1. Cost-effectiveness

    2. Adaptive cutting

    3. High efficiency

    4. Low loss

    5. Low energy consumption



    Function

    1. Z-axis servo control, one-key depth setting, UV-axis servo control, more stable precision.

    2. Aluminum processing module, PCP tool processing module,0.08mm filament processing module

    3. Japan THK, China Taiwan on the silver guide screws

    4. Modularization of all electric control(failure rate is almost 0)

    5. High-configuration industrial computer (smooth operation, no lag)

    6. Power failure reset function

    7. Self-developed ultra-high-speed high-frequency power supply

    8. X.Y-axis servo control

    9. One-piece sheet metal, more simple and convenient

    10. 150L double-pump filtered water tank



    Main technical parameters of the function

    Model/Technical Specifications WNJ-400 WNJ-500 WNJ-530 WNJ-640 WNJ-630 WNJ-800 WNJ-1080 WNJ-1200
    Table stroke and taper
    Table X and Y axis travel 400×320mm 500×400mm 500×300mm 600×400mm 630×500mm 800×630mm 1000×800mm 1200×1000mm
    Maximum straight cut thickness 280mm 280mm 300mm 300mm 300mm 400mm 400mm 500mm
    Maximum load capacity 300kg 400kg 300kg 400kg 600kg 800kg 1200kg 1500kg
    Maximum cutting dimension ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm
    Molybdenum wire diameter range ø0.15~00.2 (0.18 standard)
    Machining accuracy ≈±0.005mm
    Maximum cutting efficiency ≥15000mm²/h (one knife) ≥7000mm²/h (cut one and revise one)
    Optimal surface roughness Ra≤1.0um
    Power supply and power 380V ±10% for three-phase and four-wire; 50±1HZ≤2KW
    The weight of the whole machine 2000Kg 2500Kg 2200Kg 2600Kg 3000kg 4000kg 5500kg 7000kg
    Machine Dimensions (Length, Width, Height) 1750×1200×2000mm 1900×1300×2000mm 1800×1300×2200mm 2000×1400×2200mm 2150x1750x2300mm 2350x1950x2400mm 2500x2200x2500mm 3000x2300x2800mm
    Working fluid tank 150L dual filtration large water tank, optional
    Control system Universal self-developed system
